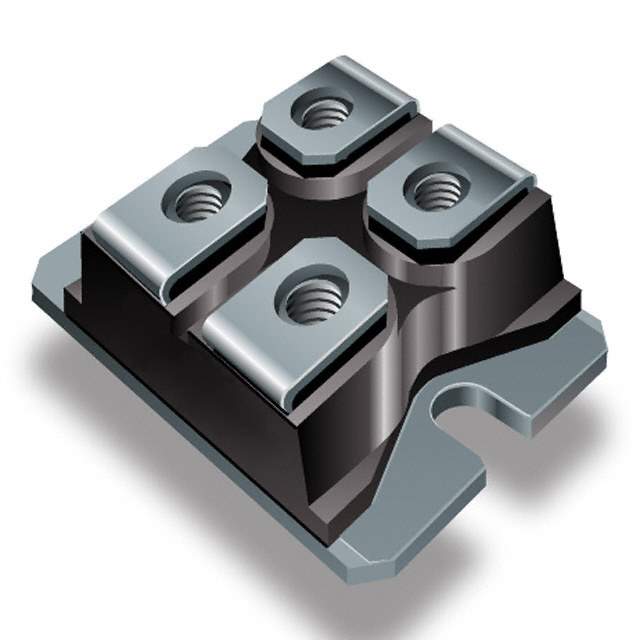

VS-GB90DA120U Real Image
Same model may have multiple batches, images only for reference.

VS-GB90DA120U

Part No VS-GB90DA120U
Manufacturer Vishay
Catalog IGBTs - Modules
Description IGBT MOD 1200V 149A 862W SOT227
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features IGBT Module NPT Single 1200 V 149 A 862 W Chassis Mount SOT-227
Manufacturer Vishay
Package Bulk
Part Status Obsolete
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package SOT-227-4, miniBLOC
Case / Package SOT-227
Family Name GB90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Quantity per package 10
Popularity High
Supply and Demand Status Balance
Win Source Part Number 903012-VS-GB90DA120U
Ultra Librarian 3D Model Ultra Librarian VS-GB90DA120U CAD Model

Description

The Vishay electronic component is a high-popularity product with a balanced supply and demand status.

  • Manufacturer: Vishay
  • Win Source Part Number: 903012-VS-GB90DA120U
  • Type: IGBT module NPT single
  • Voltage: 1200 V
  • Current: 149 A
  • Power: 862 W
  • Mounting: Chassis mount SOT-227
  • Package: Bulk
  • Recommendation: Discrete semiconductor products
