Same model may have multiple batches, images only for reference.

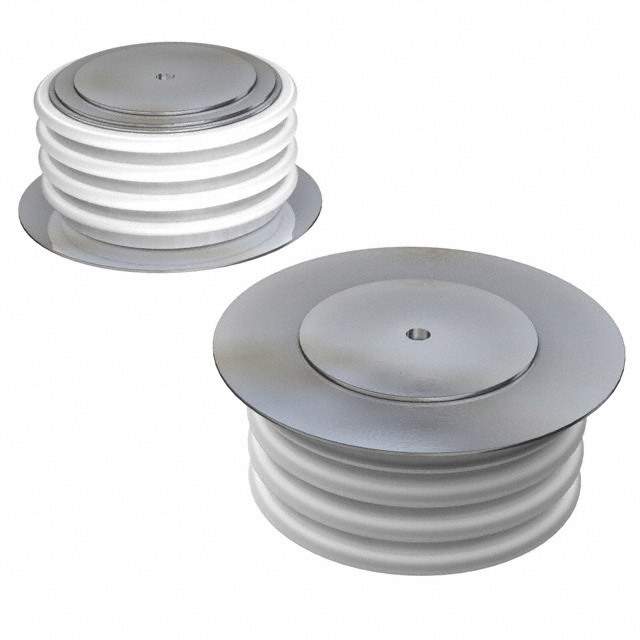

VS-SD700C36L Real Image
Same model may have multiple batches, images only for reference.

VS-SD700C36L

Part No VS-SD700C36L
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GP 3.6KV 700A DO200AB / Diode Standard 3600 V 700A Clamp On DO-200AB, B-PUK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 3600 V
Current - Average Rectified (Io) 700A
Voltage - Forward (Vf) (Max) @ If 1.66 V @ 1000 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 mA @ 3600 V
Mounting Type Clamp On
Package / Case DO-200AB, B-PUK
Supplier Device Package DO-200AB, B-PUK
Base Product Number SD700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names *SD700C36L,SD700C36L,SD700C36L-ND
Standard Package 3
Win Source Part Number 1092034-VS-SD700C36L
Ultra Librarian 3D Model Ultra Librarian VS-SD700C36L CAD Model

Description

This electronic component is a rectifier diode designed for use in power supply circuits.

  • Win Source Part Number: 1092034-VS-SD700C36L
  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Voltage Rating: 3600 V
  • Current Rating: 700A
