Same model may have multiple batches, images only for reference.

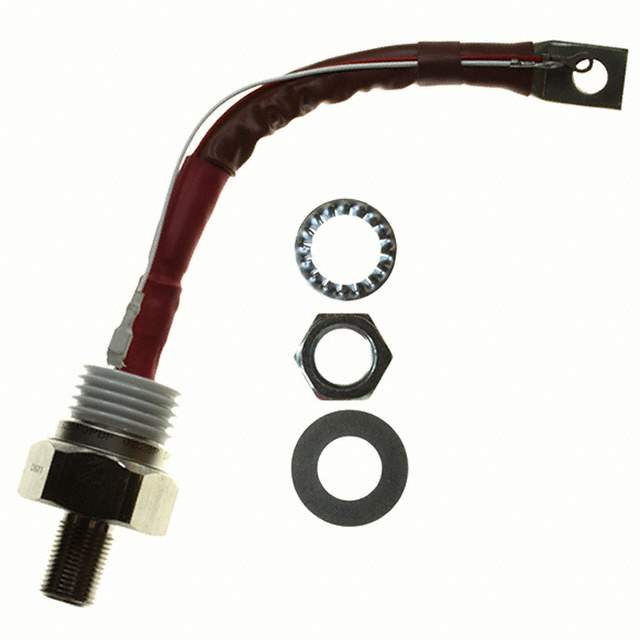

VS-ST330S12P0 Real Image
Same model may have multiple batches, images only for reference.

VS-ST330S12P0

Part No VS-ST330S12P0
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 1.2KV 520A TO209AE  /  SCR 1.2 kV 520 A Standard Recovery Chassis, Stud Mount TO-209AE (TO-118)
Datasheet
VS-ST330S12P0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Voltage - Off State 1.2 kV
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 200 mA
Voltage - On State (Vtm) (Max) 1.52 V
Current - On State (It (AV)) (Max) 330 A
Current - On State (It (RMS)) (Max) 520 A
Current - Hold (Ih) (Max) 600 mA
Current - Off State (Max) 50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 9000A, 9420A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis, Stud Mount
Package / Case TO-209AE, TO-118-4, Stud
Supplier Device Package TO-209AE (TO-118)
Base Product Number ST330
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names ST330S12P0-ND,VSST330S12P0,ST330S12P0,*ST330S12P0,VSST330S12P0-ND
Standard Package 6
Win Source Part Number 1227440-VS-ST330S12P0
Ultra Librarian 3D Model Ultra Librarian VS-ST330S12P0 CAD Model

Description

The VS-ST330S12P0 is a SCR with current rating of 330A and voltage rating of 1.2kV manufactured by Vishay General Semiconductor - Diodes Division.

  • Current Rating: 330A
  • Voltage Rating: 1.2kV
  • Recovery: Standard
  • Mounting Type: Through Hole/Stud
  • Package/Case: TO-209AE (TO-118)
  • Packaging: Bulk
  • Substitute Part Numbers: ST330S12P0-ND,VSST330S12P0,ST330S12P0,*ST330S12P0,VSST330S12P0-ND
