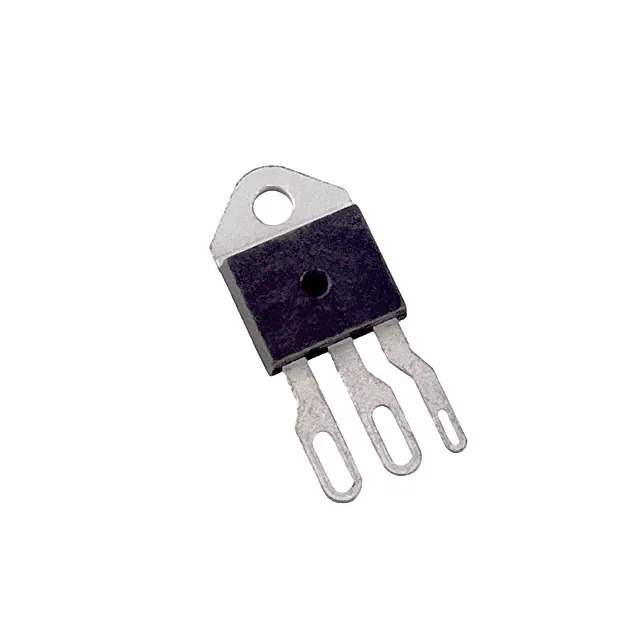

Same model may have multiple batches, images only for reference.

Q8025J6TP

Name: Q8025J6TP
Brand: Littelfuse Inc.
SKU: 890565
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	Q8025J6TP
Manufacturer	Littelfuse Inc.
Catalog	Triacs
Description	TRIAC ALTERNISTOR 800V TO218X
Datasheet	Q8025J6TP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Thyristors - TRIACs
Mfr	Littelfuse Inc.
Package	Tube
Product Status	Active
Triac Type	Alternistor - Snubberless
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	25 A
Voltage - Gate Trigger (Vgt) (Max)	1.3 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	208A, 250A
Current - Gate Trigger (Igt) (Max)	80 mA
Current - Hold (Ih) (Max)	100 mA
Configuration	Single
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-218X-3 Isolated Tab
Supplier Device Package	TO-218X Isolated
Base Product Number	Q8025
Standard Package	250 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.30.0080
California Prop 65	Warning Information
Win Source Part Number	890565-Q8025J6TP
Ultra Librarian 3D Model	Ultra Librarian Q8025J6TP CAD Model

Alternative Products

Description

The 890565-Q8025J6TP is a TRIAC (triode for alternating current) from Littelfuse Inc.

Type: alternistor snubberless TRIAC
Application: discrete semiconductor applications
Hold Current: 100 mA
Gate Trigger Voltage: 1.3V
Gate Trigger Current: 80 mA
Maximum On-State Current: 25A (It (RMS))
Non-Repetitive Surge Current (50Hz): 208A
Non-Repetitive Surge Current (60Hz): 250A
Configuration: Single
Mounting Type: Through-Hole
Package: TO-218X-3 isolated tab
Product Status: Active
