Same model may have multiple batches, images only for reference.

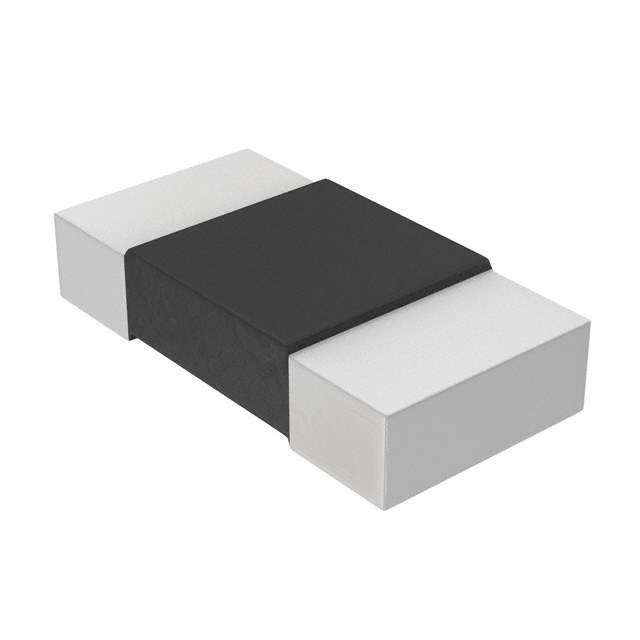

WSL0603R0200FEA Real Image
Same model may have multiple batches, images only for reference.

WSL0603R0200FEA

Part No WSL0603R0200FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.02 OHM 1% 1/10W 0603  /  20 mOhms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSL0603R0200FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSL
Package Tape & Reel
Resistance 20 mOhms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Dimension 0.060" L x 0.030" W (1.52mm x 0.76mm)
Height - Seated (Max) 0.021" (0.53mm)
Number of Terminations 2
Other Names WSLJ-.02CT,WSLJ-.02DKR,WSLJ-.02TR
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1236322-WSL0603R0200FEA
Ultra Librarian 3D Model Ultra Librarian WSL0603R0200FEA CAD Model

Description

The Vishay Dale 1236322-WSL0603R0200FEA is a chip resistor designed for use in various electronic devices. This resistor is a part of the WSL series and is known for its anti-sulfur, automotive AEC-Q200, current sense, moisture-resistant, and pulse-withstanding features.

  • Packaging: Tape and Reel
  • Height: 0.021 inches
  • Standard Package: 5,000 resistors
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Power Rating: 0.1W, 1/10W
  • Resistance: 20 mOhms
  • Composition: Metal Element
  • Terminations: Two
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Operating Temperature Range: -65°C to 170°C
  • Dimension: 0.060 inches L x 0.030 inches W (1.52mm x 0.76mm)
