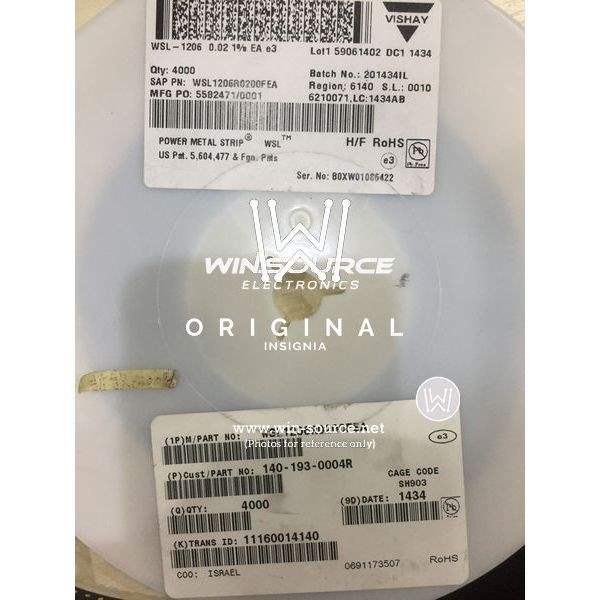

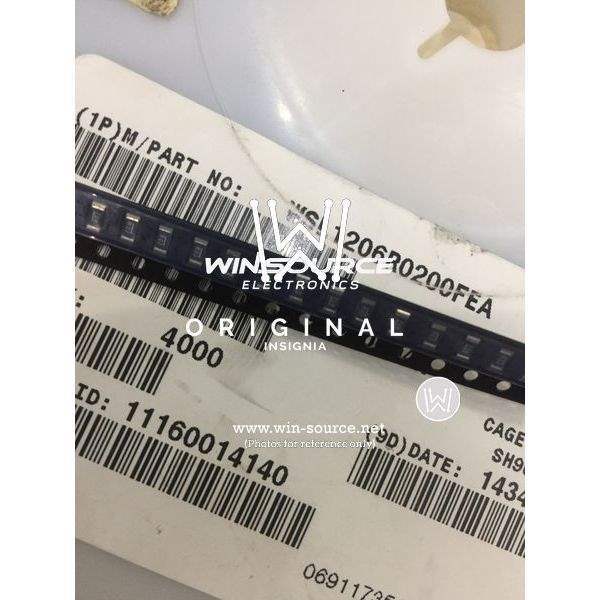

WSL1206R0200FEA Vishay WSL1206R0200FEA Real Image WSL1206R0200FEA real image 2 WSL1206R0200FEA label picture
Same model may have multiple batches, images only for reference.
WSL1206R0200FEA Vishay WSL1206R0200FEA Real Image WSL1206R0200FEA real image 2 WSL1206R0200FEA label picture
WSL1206R0200FEA Vishay WSL1206R0200FEA Real Image WSL1206R0200FEA real image 2 WSL1206R0200FEA label picture
Same model may have multiple batches, images only for reference.

WSL1206R0200FEA

Part No WSL1206R0200FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description Res Metal Strip 1206 0.02 Ohm 1% 0.25W(1/4W) ±75ppm/°C Sulfur Resistant Pad SMD Automotive T/R / RES SMD 0.02 OHM 1% 1/4W 1206
Datasheet
WSL1206R0200FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.02
Tolerance ±1%
Power (Watts) 0.25W, 1/4W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C to 170°C
Case / Package 1206
Height - Seated (Max) 0.035" (0.89mm)
Number of Terminations 2
Win Source Part Number 1118050-WSL1206R0200FEA
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Automotive
Family Name WSL
Introduction Date August 11, 2004
ECCN EAR99
Country of Origin Israel, Mexico, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian WSL1206R0200FEA CAD Model

Description

The Vishay WSL1206R0200FEA is a surface mount metal element resistor with a power rating of 0.25W.

  • Resistance: 0.02 ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Terminations: two
  • Operating Temperature: -65°C to 170°C
  • Applications: automotive applications
  • Compliance: automotive AEC-Q200, moisture resistant, and pulse-withstanding
