Same model may have multiple batches, images only for reference.

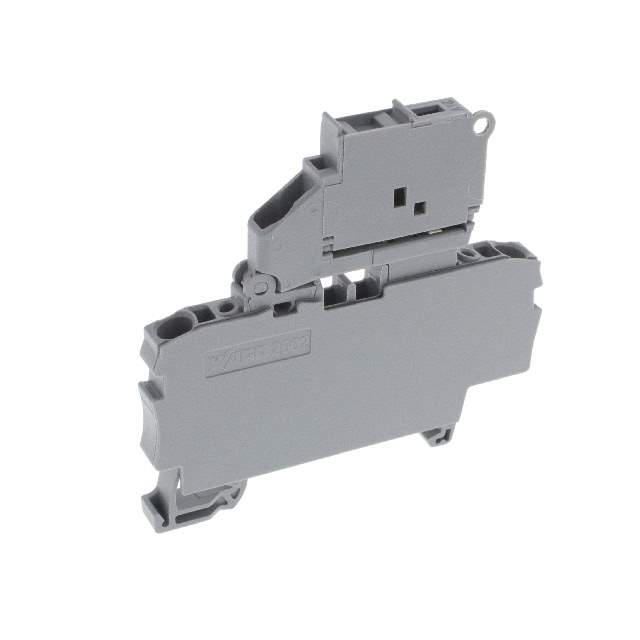

2002-1611/1000-541 Real Image
Same model may have multiple batches, images only for reference.

2002-1611/1000-541

Part No 2002-1611/1000-541
Manufacturer WAGO Corporation
Catalog Terminal Blocks
Description 2-CONDUCTOR FUSE TERMINAL BLOCK; / Terminal Block Connector 2 Position Disconnect Gray 12-18 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Din Rail, Channel
Manufacturer WAGO Corporation
Packaging Bulk
Type Disconnect
Disconnect Type Fuse, Lever
Number of Positions 2
Number of Levels 1
Terminal - Width 6.2mm
Termination Style Push In, Spring
Current - IEC 6.3 A
Voltage - IEC 250V
Current - UL 6.3 A
Voltage - UL 30V
Wire Gauge or Range - AWG 12-18 AWG
Wire Gauge or Range - mm2 0.75-4mm²
Features LED
Color Gray
Fuse Type 5mm x 20mm
Material - Insulation Polyamide (PA66), Nylon 6/6
Stripping Length 10mm ~ 12mm
Base Product Number 2002
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 2946-2002-1611/1000-541,60283146,2002-1611/1000-0541
Standard Package 1
Win Source Part Number 1332295-2002-1611/1000-541
Ultra Librarian 3D Model Ultra Librarian 2002-1611/1000-541 CAD Model

Description

The WAGO Corporation 1332295-2002-1611/1000-541 is a bulk-packaged, gray-colored disconnect terminal block with two positions and one level.

  • Packaging: Bulk
  • Color: Gray
  • Type: Disconnect
  • Positions: 2
  • Number of Levels: 1
  • Termination Style: Push-In and Spring
  • Current (IEC): 6.3A
  • Voltage (IEC): 250V
  • Current (UL): 6.3A
  • Voltage (UL): 30V
  • Wire Gauge: 12-18 AWG or 0.75-4mm²
  • LED: Yes
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Fuse Type: 5mm x 20mm
  • Terminal Width: 6.2mm
  • Stripping Length: 10-12mm
  • Disconnect Via: Fuse or Lever
  • MSL: 1 (Unlimited)
