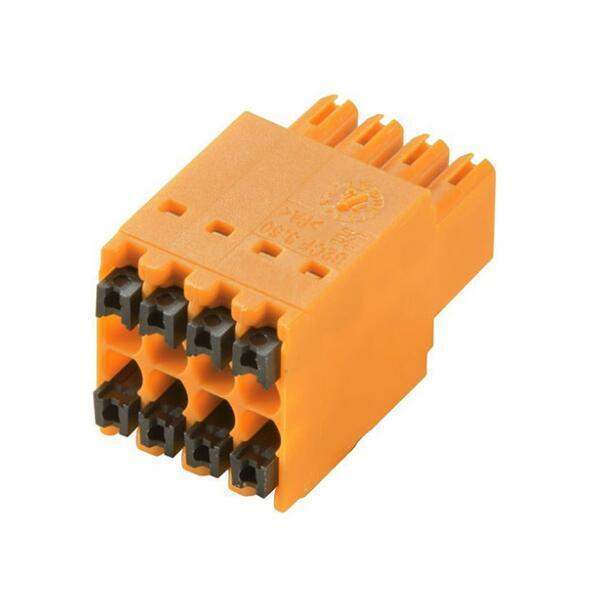

1277290000 Weidmüller
Same model may have multiple batches, images only for reference.

1277290000

Part No 1277290000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 8POS STR 3.5MM
Datasheet
1277290000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Series Omnimate B2CF
Package Bulk
Product Status Active
Type Plug, Female Sockets
Number of Positions 8
Positions Per Level 4
Number of Levels 2
Pitch 0.138" (3.50mm)
Win Source Part Number WS1205831-1277290000
Ultra Librarian 3D Model Ultra Librarian 1277290000 CAD Model

Description

• Gold-plated contact surface on request<br /> • Tape packaged on request<br /> • See hole pattern for distance between rows<br /> • Rated voltage referenced to rated cross-section and minimum poles • P on drg. = pitch • Rated data relate to the respective component. Clearance and creepage distances to other components must be set in accordance with the relevant application standard.
