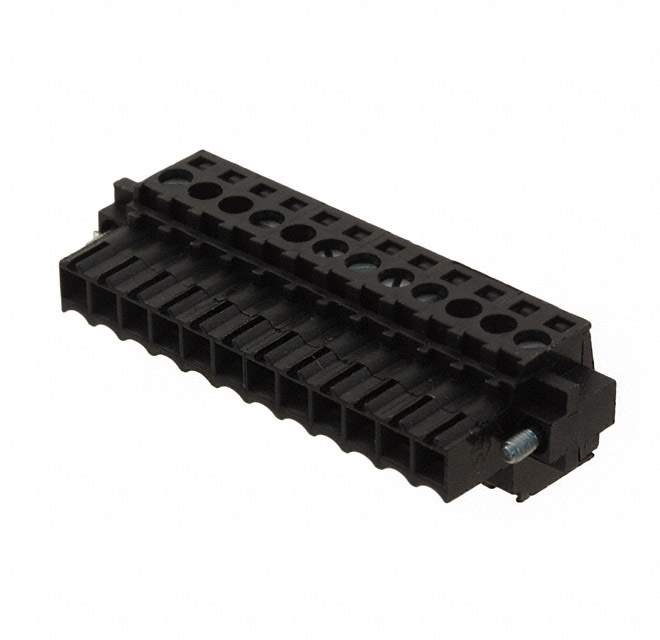

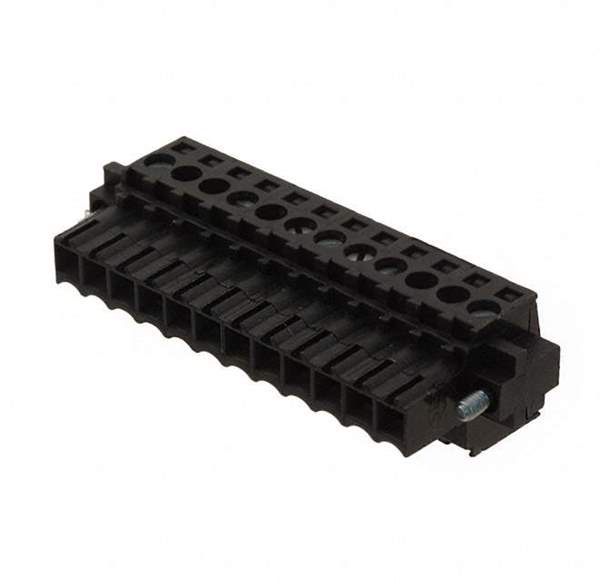

1615880000

Get a Quote

Part No	1615880000
Manufacturer	Weidmuller
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 12POS STR 3.5MM / 12 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Weidmüller
Series	Omnimate BL
Package	Bulk
Type	Plug, Female Sockets
Number of Positions	12
Positions Per Level	12
Number of Levels	1
Pitch	0.138" (3.50mm)
Plug Wire Entry	180°
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Mounting Type	Free Hanging (In-Line)
Current - IEC	17A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-28 AWG
Wire Gauge or Range - mm2	0.2-1.5mm2
Color	Black
Temperature Range - Operating	-50°C ~ 100°C
Contact Mating Finish	Tin
Features	Mating Flange
Material Flammability Rating	UL94 V-0
Ingress Protection	IP20
Screw Size	M2
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Wire Strip Length	6mm
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.512" (13.00mm)
Standard Package	36
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1349704-1615880000
Ultra Librarian 3D Model	Ultra Librarian 1615880000 CAD Model

Alternative Products

Description

The Omnimate BL terminal block is a plug female socket that has 12 positions per level and 12 positions overall.

Positions per Level: 12
Total Positions: 12
Pitch: 0.138" (3.50mm)
Plug Wire Entry: 180°
Termination Style: Screw-clamping yoke (tension sleeve)
Current Rating: 17A (IEC) and 10A (UL)
Wire Gauge: 14-28 AWG and 0.2-1.5mm2
Color: Black
Contact Mating Finish: Tin
Standard Package: 36
Torque Screw: 0.2-0.25 Nm (1.7-2.2 Lb-In)
Mounting: Free hanging (in-line)
Temperature Range: -50°C to 100°C
Manufacturer: Weidmüller
