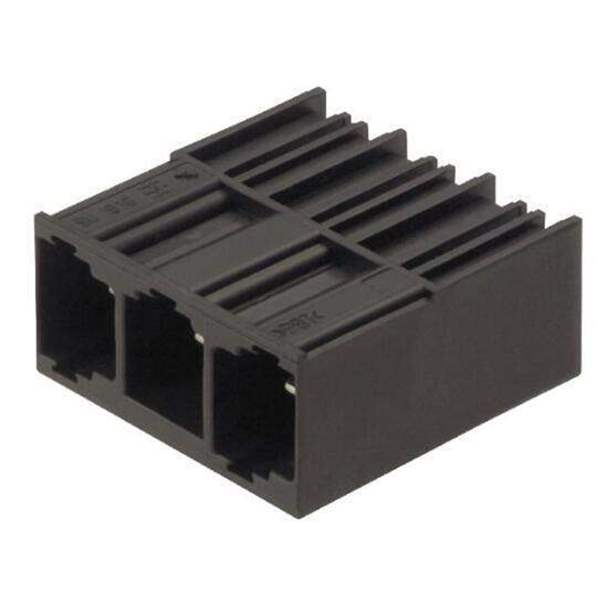

1813330000 Weidmüller
Same model may have multiple batches, images only for reference.

1813330000

Part No 1813330000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 2POS 10.16MM
Datasheet
1813330000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Series Omnimate SU
Package Bulk
Product Status Active
Type Header, Blade Pins, Shrouded (4 Side)
Number of Positions 2
Positions Per Level 2
Number of Levels 1
Pitch 0.400" (10.16mm)
Header Orientation 90°, Right Angle
Win Source Part Number WS1206513-1813330000
Ultra Librarian 3D Model Ultra Librarian 1813330000 CAD Model

Description

Single-row, high-current male header, for side-byside mounting without sacrificing any poles, or with patented flange for fast locking without tools. Maximum connection and operating reliability thanks to a mating profile that prevents incorrect connection, with unique coding diversity and additional fastening in the flange. 3.5 mm pin length is optimised for wave soldering, plug-in direction 90° to solder pins.
