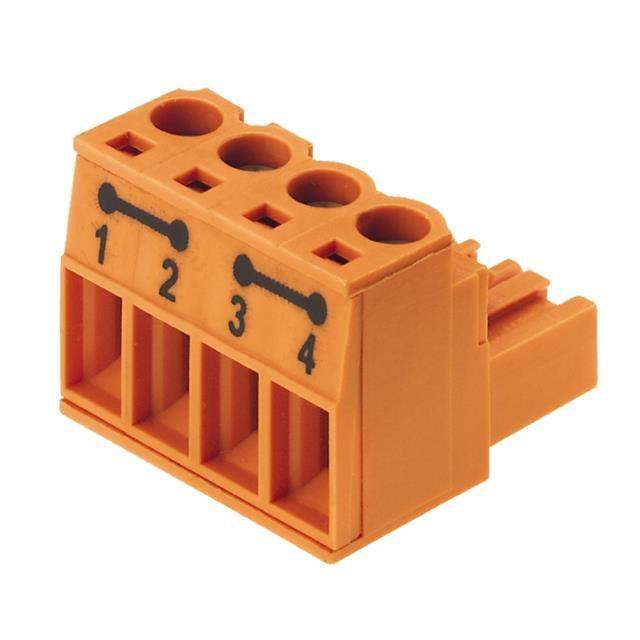

Same model may have multiple batches, images only for reference.

1839770000

Get a Quote

Part No	1839770000
Manufacturer	Weidmuller
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 4POS STR 5.08MM / 4 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Weidmüller
Series	Omnimate BL
Package	Bulk
Product Status	Obsolete
Type	Plug, Female Sockets
Number of Positions	4
Positions Per Level	4
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Mounting Type	Free Hanging (In-Line)
Current - IEC	17.5A
Voltage - IEC	400 V
Current - UL	15 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Orange
Temperature Range - Operating	-50°C ~ 100°C
Contact Mating Finish	Tin
Features	Positions Stamped, Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	IP20
Screw Size	M2.5
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Wire Strip Length	7mm
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.598" (15.19mm)
Standard Package	100
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1349791-1839770000
Ultra Librarian 3D Model	Ultra Librarian 1839770000 CAD Model

Alternative Products

Description

The 1349791-1839770000 is a 4-position plug, female sockets terminal block from the Omnimate BL series of Weidmüller.

Number of Positions: 4
Pitch: 0.200" (5.08mm)
Mounting Type: Free Hanging (In-Line)
Number of Levels: 1
Positions Per Level: 4
Wire Entry: 180°
Termination Style: Screw - Clamping Yoke (Tension Sleeve)
Current - IEC: 17.5A
Voltage - IEC: 400V
Current - UL: 15A
Voltage - UL: 300V
Wire Gauge or Range - AWG: 12-30 AWG
Wire Gauge or Range - mm²: 0.2-2.5mm²
Contact Mating Finish: Tin
Features: Retention Latches (Non-Wire Side)
Packaging: Bulk
Material - Housing: Polybutylene Terephthalate (PBT)
Ingress Protection: IP20
Operating Temperature: -50°C to 100°C
