Same model may have multiple batches, images only for reference.

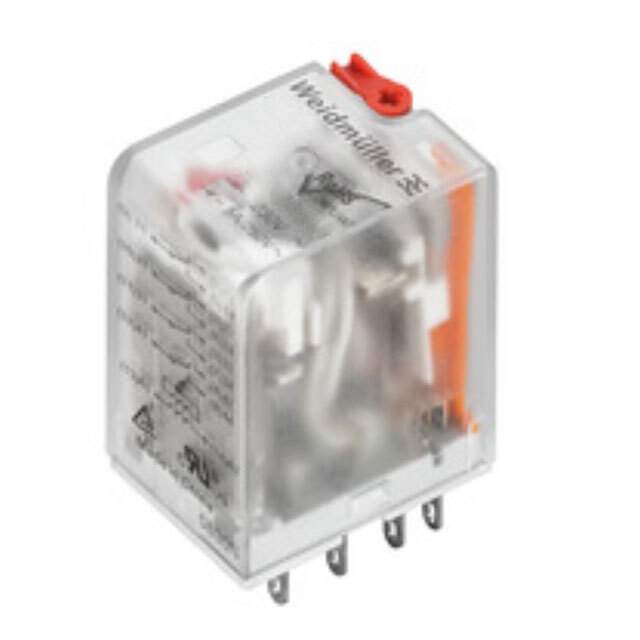

7760056103 Real Image
Same model may have multiple batches, images only for reference.

7760056103

Part No 7760056103
Manufacturer Weidmuller
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE 4PDT 10A 115V
Datasheet
7760056103 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Estimated Pruduction Lead Time 7 Weeks
Features General Purpose Relay 4PDT (4 Form C) 115VAC Coil Socketable
Manufacturer Weidmuller
Series DRM
Package Bulk
Operating Temperature Range -40°C ~ 55°C
Mounting Socketable
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0075
Other Part Number 281-6041, 7760056103-ND, DRM570615LT/4CO/115V AC
Quantity per package 20
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 869284-7760056103
Ultra Librarian 3D Model Ultra Librarian 7760056103 CAD Model

Description

The Weidmuller 7760056103 is a general-purpose relay that belongs to the DRM series.

  • Configuration: 4PDT (4 Form C)
  • Design: Socketable
  • Supply and Demand Status: limited
