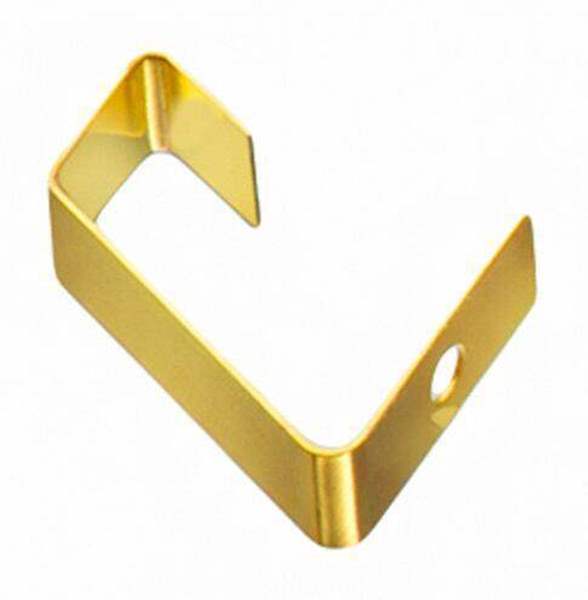

331011452535

Part No 331011452535
Manufacturer Wurth Electronics Inc
Catalog RFI and EMI - Contacts, Fingerstock and Gaskets
Description WE-SECF SMD EMI CONTACT FINGER
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category RF and Wireless RFI and EMI - Contacts, Fingerstock and Gaskets
Product Status Active
Type Shield Finger
Width 0.098" (2.50mm)
Length 0.177" (4.50mm)
Height 0.138" (3.50mm)
Material Beryllium Copper
Plating - Thickness Flash
Operating Temperature -40°C ~ 100°C
Win Source Part Number WS1207927-331011452535
Ultra Librarian 3D Model Ultra Librarian 331011452535 CAD Model

Description

• The solder profile must comply with the technical product specifications. All other profiles will void the warranty. • To avoid contact finger misplacement and to avoid the soldering joints coming off, use maximum adjusted force at the Pick- and Place machine that does not exceed the recommended compression rate (of the contact fingers). • The soldering joints must be kept clean, dry and grease free. The contact fingers should be placed onto the solder pad of the printed circuit board in a way that no tin solder is able to come into the undermost or the first elastic bending of the contact fingers. This will avoid the bending being affected. • All other soldering methods are at the customers’ own risk.
