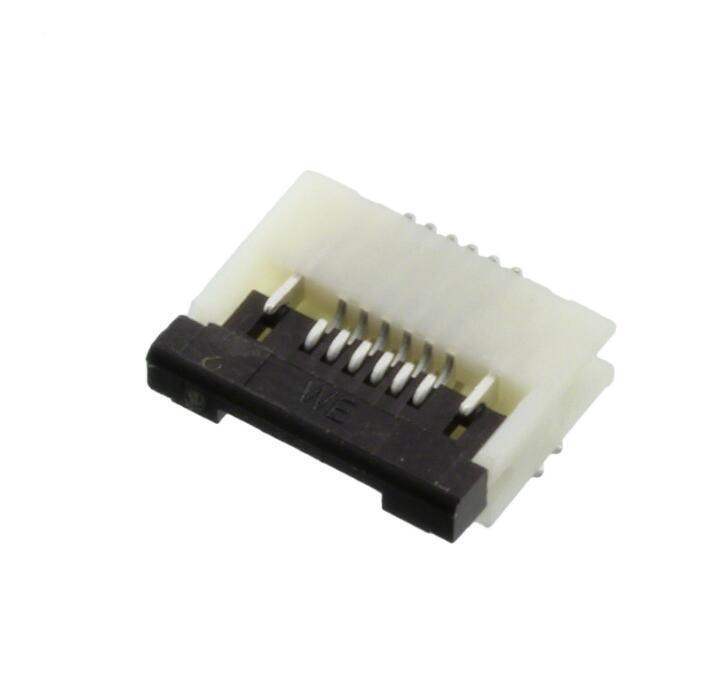

687106149022Würth Elektronik
Same model may have multiple batches, images only for reference.

687106149022

Part No 687106149022
Manufacturer Wurth Electronics Inc
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 6POS 0.5MM R/A
Datasheet
687106149022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203218-687106149022
Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Series WR-FPC
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Termination Solder
Features Solder Retention, Zero Insertion Force (ZIF)
Ultra Librarian 3D Model Ultra Librarian 687106149022 CAD Model

Description

■ Insulation: PET ■ Flammability Rating: UL Sub. 758<br /> ■ Contact Plating: Tin ■ Quality Class: 20-25 mating cycles ■ Compliance: Lead Free and RoHS<br /> ■ Flexing Test: 180 degrees >20 times ■ Abrasion: >10,000 times ■ Pull/Out: >20 times ■ UL Certified: E328849 ■ UL Style: 20706<br />
