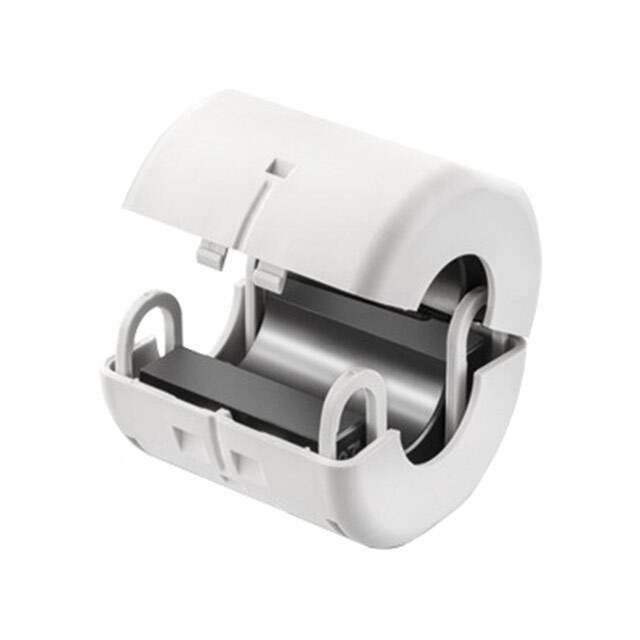

74272221 Würth Elektronik
Same model may have multiple batches, images only for reference.

74272221

Part No 74272221
Manufacturer Wurth Electronics Inc
Catalog Cable Ferrites
Description STAR-TEC LFS SNAP FERRITE WITH S
Datasheet
74272221 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206324-74272221
Manufacturer Würth Elektronik
Category Filters-Cable Ferrites
Series Star-Tec LFS
Package Tray
Product Status Active
Type Round
Design Hinged (Snap On), Key Required
Impedance @ Frequency 40Ohm @ 10MHz
Material 8W5000
Mounting Type Free Hanging
Ultra Librarian 3D Model Ultra Librarian 74272221 CAD Model

Description

Hinged (Snap On), Key Required Free Hanging Ferrite Core 40Ohm @ 10MHz ID 0.413" Dia (10.50mm) OD 1.323" W x 1.161" H (33.60mm x 29.50mm) Length 1.661" (42.20mm)
