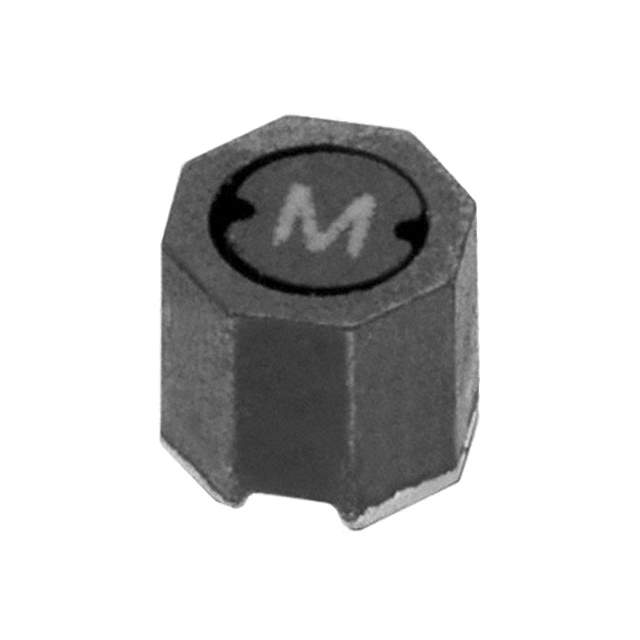

Same model may have multiple batches, images only for reference.

74402500047

Name: 74402500047
Brand: Wurth Electronics Inc
SKU: 848444
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74402500047
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 470NH 3.3A 23 MOHM SMD
Datasheet	74402500047 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	470 nH
Tolerance	±25%
Current Rating (Amps)	3.3 A
Current - Saturation (Isat)	4.7A
Shielding	Shielded
DC Resistance (DCR)	23mOhm Max
Frequency - Self Resonant	290MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	2828
Size / Dimension	0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	550 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	848444-74402500047
Ultra Librarian 3D Model	Ultra Librarian 74402500047 CAD Model

Alternative Products

Description

The WE-TPC series inductor is a versatile electronic component used in a variety of applications.

Series: WE-TPC
Size: 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height: 0.118" (3.00mm)
Type: drum core, wirewound
Inductance: 470 nH
Shielding: shielded
Tolerance: ±25%
Mounting Type: surface mount
Package: nonstandard
DC Resistance (DCR): 23mOhm Max
Current Rating: 3.3 A
Temperature Range: -40°C to 125°C
Core Material: ferrite
Self-Resonant Frequency: 290MHz
Status: active
Manufacturer: Wurth Electronics Inc
