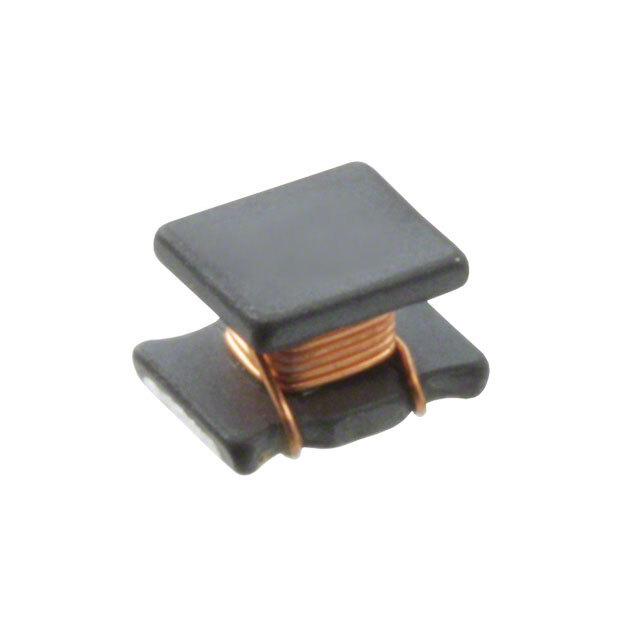

Same model may have multiple batches, images only for reference.

744045002

Name: 744045002
Brand: Wurth Electronics Inc
SKU: 1479194
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744045002
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	2.2 µH Unshielded Drum Core, Wirewound Inductor 1.6 A 110mOhm Max 1812 (4532 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Würth Elektronik
Series	WE-LQ
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	1.6 A
Current - Saturation (Isat)	2.75A
Shielding	Unshielded
DC Resistance (DCR)	110mOhm Max
Q @ Freq	40 @ 1MHz
Frequency - Self Resonant	80MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.114" (2.90mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1479194-744045002
Ultra Librarian 3D Model	Ultra Librarian 744045002 CAD Model
