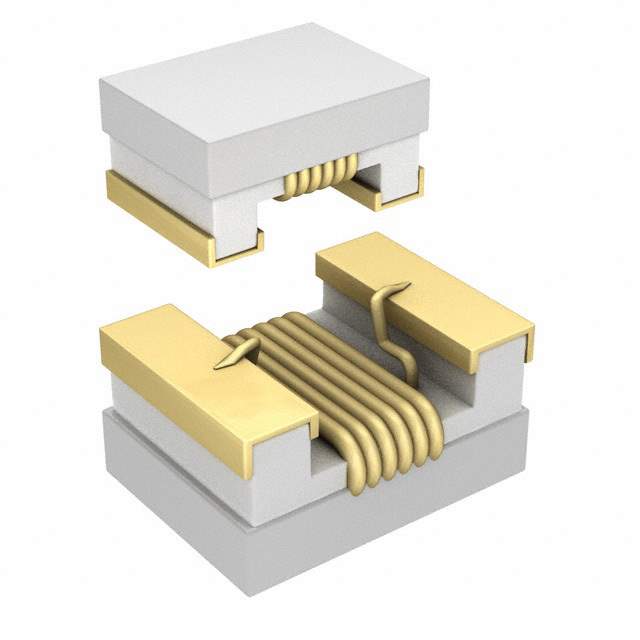

Same model may have multiple batches, images only for reference.

744761127C

Name: 744761127C
Brand: Wurth Electronics Inc
SKU: 1040033
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744761127C
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 27NH 600MA 200MOHM SMD / 27 nH Unshielded Drum Core, Wirewound Inductor 600 mA 200mOhm Max 0603 (1608 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Würth Elektronik
Series	WE-KI
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	27 nH
Tolerance	±5%
Current Rating (Amps)	600 mA
Shielding	Unshielded
DC Resistance (DCR)	200mOhm Max
Q @ Freq	35 @ 250MHz
Frequency - Self Resonant	2.8GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	SMD (SMT)
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Dimension	0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max)	0.043" (1.10mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	732-744761127CTR
Standard Package	3,000
Win Source Part Number	1040033-744761127C
Ultra Librarian 3D Model	Ultra Librarian 744761127C CAD Model

Alternative Products

Description

The Würth Elektronik WE-KI series inductor is an unshielded drum core wirewound inductor with an inductance of 27 nH and a tolerance of ±5%. The manufacturer is Würth Elektronik.

Shielding: unshielded
Type: drum core wirewound
Inductance: 27 nH
Tolerance: ±5%
Q @ Freq: 35 @ 250MHz
Temperature Range: -40°C ~ 125°C
Package: tape & reel (TR)
Dimension: 0.063" L x 0.041" W (1.60mm x 1.05mm)
DC Resistance (DCR): 200mOhm Max
Package/Case: 0603 (1608 Metric)
Current Rating: 600 mA
Applications: fixed inductor applications
