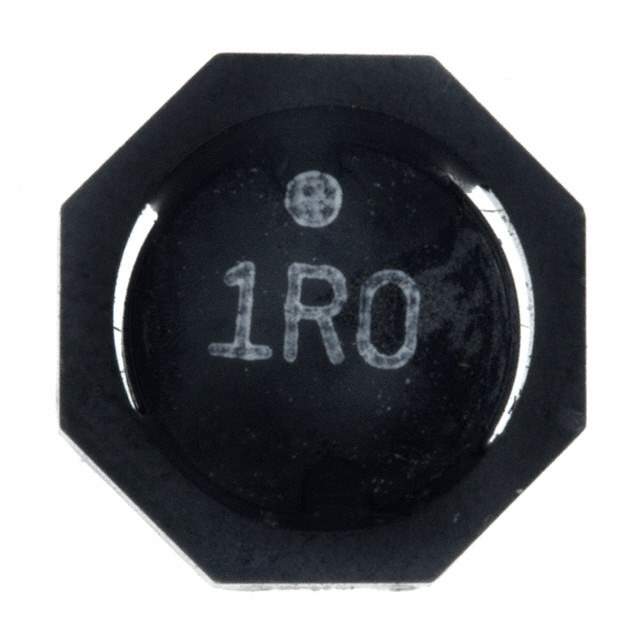

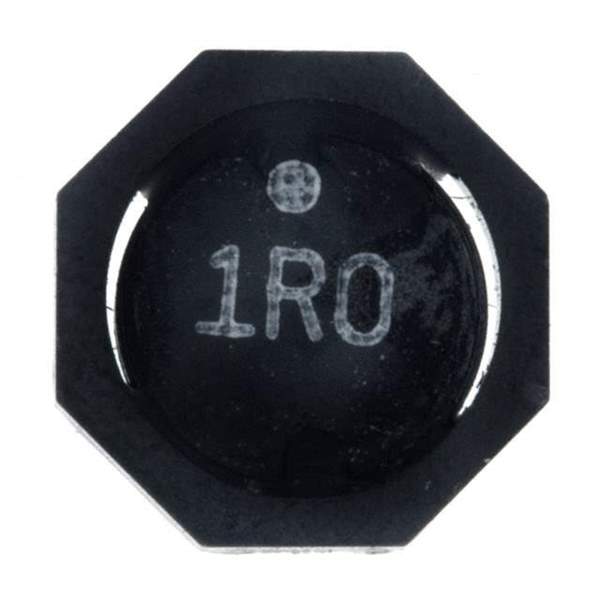

Same model may have multiple batches, images only for reference.

744065680

Name: 744065680
Brand: Wurth Electronics Inc
SKU: 857268
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744065680
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 68UH 1.2A 300 MOHM SMD
Datasheet	744065680 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±30%
Current Rating (Amps)	1.2 A
Current - Saturation (Isat)	1.05A
Shielding	Shielded
DC Resistance (DCR)	300mOhm Max
Frequency - Self Resonant	9MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857268-744065680
Ultra Librarian 3D Model	Ultra Librarian 744065680 CAD Model

Alternative Products

Description

The 857268-744065680 is a fixed inductor from the WE-TPC series by Wurth Electronics Inc.

Core Type: Shielded Drum Core, Wirewound
Package: Tape and Reel
Mounting Type: Surface Mount
Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Inductance: 68 μH
Maximum Seated Height: 0.122" (3.10mm)
Tolerance: ±30%
DC Resistance (DCR): 300mOhm maximum
Operating Temperature: -40°C to 125°C
Current Rating: 1.2 A
Self-Resonant Frequency: 9MHz
