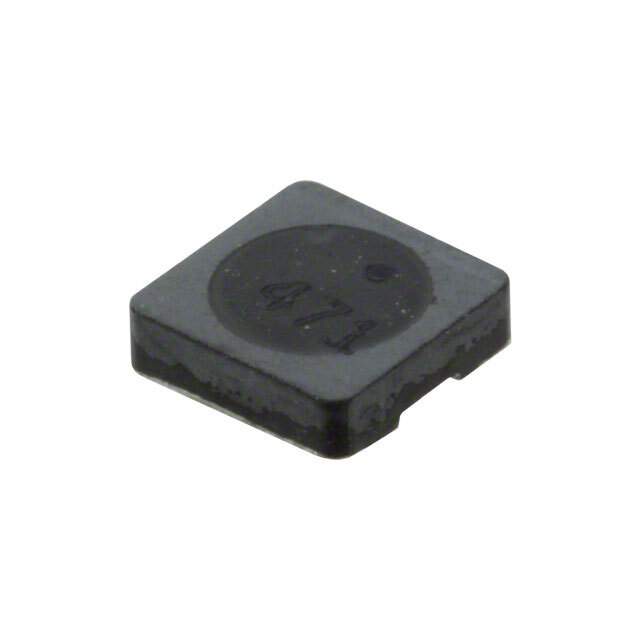

744052470 Real Image
Same model may have multiple batches, images only for reference.

744052470

Part No 744052470
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 770MA 550MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 770 mA 550mOhm Max 2323 (5858 Metric)
Datasheet
744052470 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±30%
Current Rating (Amps) 770 mA
Current - Saturation (Isat) 700mA
Shielding Shielded
DC Resistance (DCR) 550mOhm Max
Frequency - Self Resonant 18MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-3667-6,732-3667-2,732-3667-1
Standard Package 500
Win Source Part Number 1327694-744052470
Ultra Librarian 3D Model Ultra Librarian 744052470 CAD Model

Description

The Würth Elektronik 744052470 is a high-quality fixed inductor that is designed to meet the demands of electronic applications.

  • Inductance: 47μH
  • Tolerance: ±30%
  • Current Rating: 770mA
  • DC Resistance: 550mOhm max
  • Temperature Range: -40°C to 125°C
