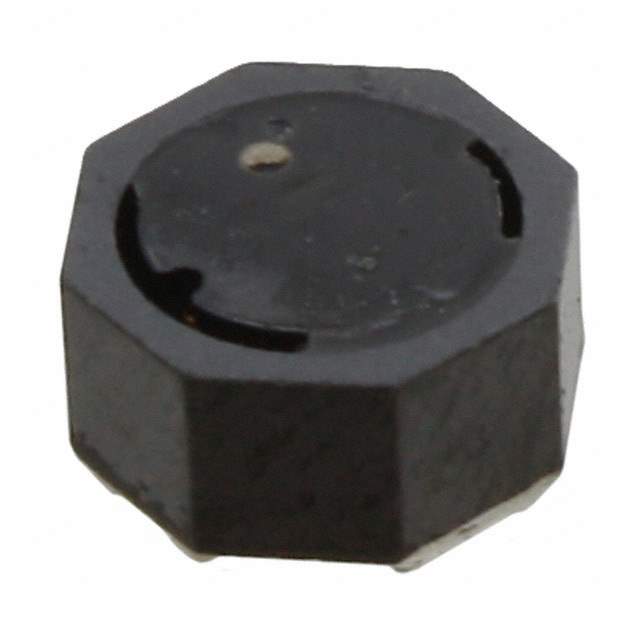

744071220

Get a Quote

Part No	744071220
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22UH 2.3A 80 MOHM SMD / 22 µH Shielded Drum Core, Wirewound Inductor 2.3 A 80mOhm Max Nonstandard
Datasheet	744071220 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±30%
Current Rating (Amps)	2.3 A
Current - Saturation (Isat)	1.9A
Shielding	Shielded
DC Resistance (DCR)	80mOhm Max
Frequency - Self Resonant	16MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.181" (4.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-3719-1,732-3719-2,732-3719-6
Standard Package	300
Win Source Part Number	1327629-744071220
Ultra Librarian 3D Model	Ultra Librarian 744071220 CAD Model

Alternative Products

Description

The Würth Elektronik 1327629-744071220 is a drum core, wirewound inductor that is shielded.

Mounting Type: Surface Mount
Size/Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
Inductance: 22 μH
Height-Seated (Max): 0.181" (4.60mm)
Standard Package: 300
Tolerance: ±30%
Material-Core: Ferrite
DC Resistance (DCR): 80mOhm Max
Temperature Range: -40°C ~ 125°C
HTSUS Code: 8504.50.8000
