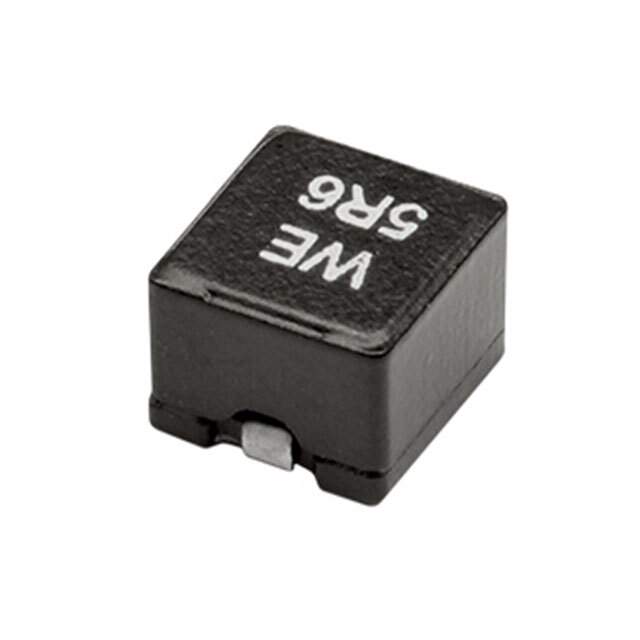

Same model may have multiple batches, images only for reference.

744316470

Name: 744316470
Brand: Wurth Electronics Inc
SKU: 1327566
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744316470
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 4.6A 24.5MOHM SM / 4.7 µH Shielded Wirewound Inductor 4.6 A 24.5mOhm Max 2-SMD
Datasheet	744316470 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Wirewound
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	4.6 A
Current - Saturation (Isat)	4.7A
Shielding	Shielded
DC Resistance (DCR)	24.5mOhm Max
Frequency - Self Resonant	57MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	2-SMD
Supplier Device Package	5040
Size / Dimension	0.217" L x 0.209" W (5.50mm x 5.30mm)
Height - Seated (Max)	0.169" (4.30mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-6182-6,732-6182-2,732-6182-1
Standard Package	1,500
Win Source Part Number	1327566-744316470
Ultra Librarian 3D Model	Ultra Librarian 744316470 CAD Model

Alternative Products

Description

The Würth Elektronik 744316470 is a high-quality fixed inductor that is designed to meet the demands of various electronic applications.

Mounting Type: surface mount
Size/Dimension: 0.217" L x 0.209" W (5.50mm x 5.30mm)
Inductance: 4.7 µH
Current Rating: 4.6 A
DC Resistance (DCR): 24.5mOhm Max
