Same model may have multiple batches, images only for reference.

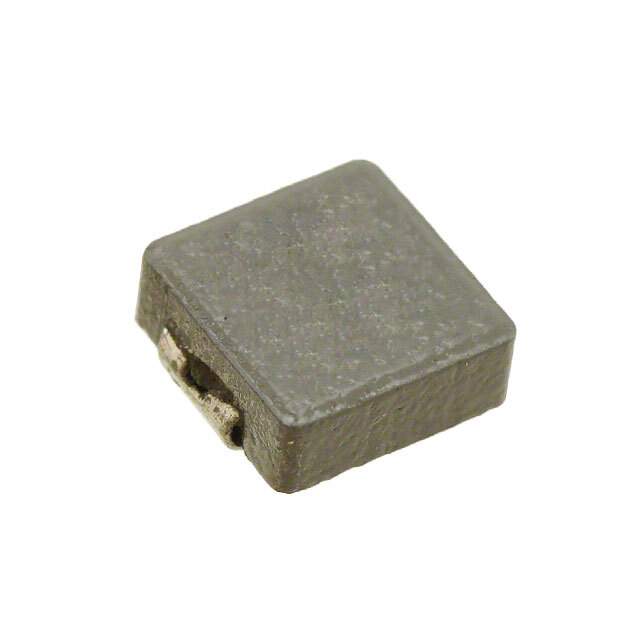

74437346010 Real Image
Same model may have multiple batches, images only for reference.

74437346010

Part No 74437346010
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description Inductor Power Shielded Wirewound 1uH 20% 100KHz Powdered Iron 8A 10mOhm DCR T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Nonstandard
Composition Wirewound
Core Material Composite, Ferrite
Current Rating 8 A
DC Resistance (DCR) 10 mΩ
Depth 6.6 mm
Frequency 54 MHz
Height 2.8 mm
Height - Seated (Max) 3.0988 mm
Inductance 1 µH
Inductance Tolerance 20 %
Length 7.3 mm
Max DC Current 8 A
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Packaging Tape & Reel (TR)
REACH SVHC Unknown
RMS Current (Irms) 8 A
RoHS Compliant
Saturation Current 22 A
Self Resonant Frequency 54 MHz
Series Resistance 10 mΩ
Shielding Shielded
Termination SMD/SMT
Test Frequency 100 kHz
Tolerance 20 %
Width 6.6 mm
Win Source Part Number 1135599-74437346010
Categories Fixed Inductors
Manufacturer Wurth Electronics Inc
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 74437346010 CAD Model

Description

The Wurth Electronics Inc 1135599-74437346010 is a medium-popularity electronic component with limited supply and demand status.

  • Threat: Fake-threat (42%)
  • Type: Fixed Inductor
  • Current Rating: 8 A
  • Length: 7.3 mm
  • Height: 3.0988 mm
  • Shielded: Yes
  • Inductance: 1 µH
  • Tolerance: 20%
  • Test Frequency: 100 kHz
  • Core Material: Composite, Ferrite
  • Self-Resonant Frequency: 54 MHz
  • Construction: Wirewound
  • Frequency: 54 MHz
  • Height: 2.8 mm
  • Width: 6.6 mm
  • DC Resistance (DCR): 10 mΩ
  • Mounting Type: Surface Mount
  • Package/Case: Nonstandard
  • RoHS Compliant: Yes
  • Minimum Operating Temperature: -40 °C
  • RMS Current (Irms): 8 A
  • Saturation Current: 22 A
  • Series Resistance: 10 mΩ
  • Maximum Operating Temperature: 125 °C
