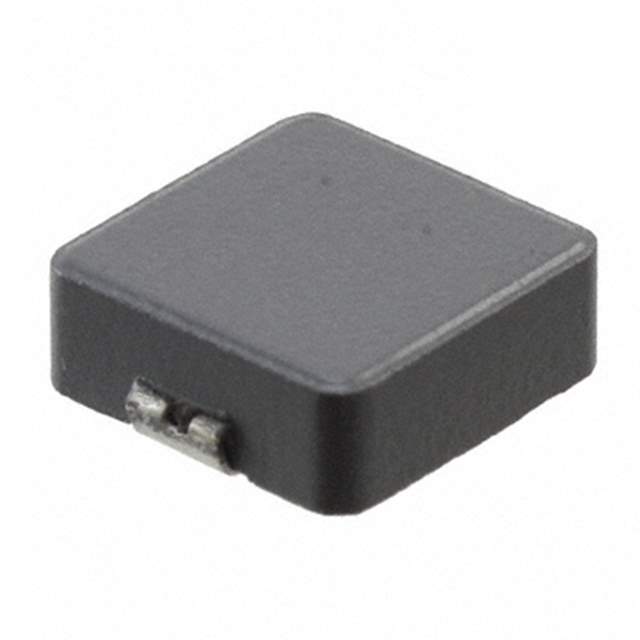

744373580022 Real Image
Same model may have multiple batches, images only for reference.

744373580022

Part No 744373580022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 220NH 22.5A 1.35 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-LHMI
Package Tape & Reel
Product Status Active
Type Molded
Material - Core Iron Powder
Inductance 220 nH
Tolerance ±20%
Current Rating (Amps) 22.5 A
Current - Saturation (Isat) 60A
Shielding Shielded
DC Resistance (DCR) 1.35mOhm Max
Frequency - Self Resonant 145MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 8040
Size / Dimension 0.362" L x 0.335" W (9.20mm x 8.50mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 800 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857412-744373580022
Ultra Librarian 3D Model Ultra Librarian 744373580022 CAD Model

Description

The WE-LHMI series, manufactured by Wurth Electronics Inc, offers a range of molded fixed inductors designed for surface mount applications.

  • Part Number: 857412-744373580022
  • Shielded: Yes
  • Package: Tape and Reel
  • Size: 0.362" L x 0.335" W (9.20mm x 8.50mm)
  • Height: 0.157" (4.00mm)
  • Inductance: 220 nH
  • Tolerance: ±20%
  • Temperature Range: -40°C to 125°C
  • DC Resistance (DCR): 1.35mOhm max
  • Current Rating: 22.5 A
  • Core Material: Iron Powder
  • Self-Resonant Frequency: 145MHz
  • Product Status: Active
