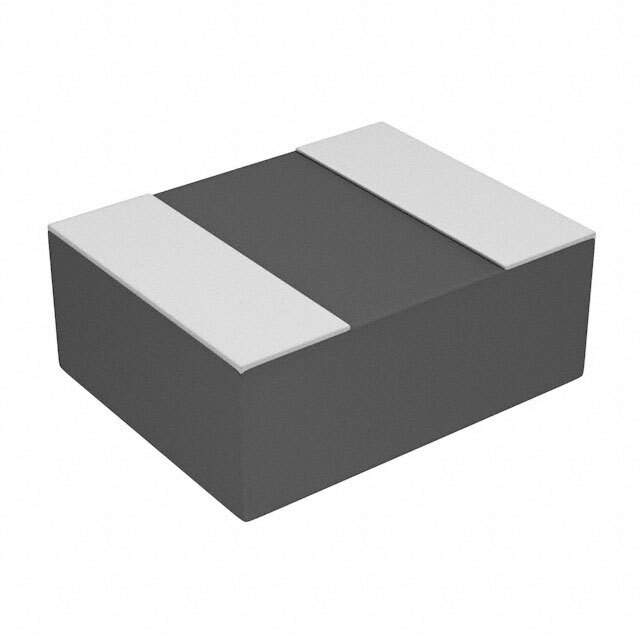

Same model may have multiple batches, images only for reference.

74438323082

Name: 74438323082
Brand: Wurth Electronics Inc
SKU: 857430
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74438323082
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 8.2UH 700MA 743MOHM SM
Datasheet	74438323082 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-MAPI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Metal Composite
Inductance	8.2 µH
Tolerance	±20%
Current Rating (Amps)	700 mA
Current - Saturation (Isat)	1.45A
Shielding	Shielded
DC Resistance (DCR)	743mOhm Max
Frequency - Self Resonant	27MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	2510
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.039" (1.00mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857430-74438323082
Ultra Librarian 3D Model	Ultra Librarian 74438323082 CAD Model

Alternative Products

Description

The WE-MAPI series from Wurth Electronics Inc is a molded, shielded inductor with a size of 0.098" L x 0.079" W (2.50mm x 2.00mm).

Inductance: 8.2 µH
Tolerance: ±20%
Maximum Seated Height: 0.039" (1.00mm)
DC Resistance (DCR): 743mOhm Max
Current Rating: 700 mA
Temperature Range: -40°C to 125°C
AEC-Q200: Yes
Core Material: Metal Composite
Self-Resonant Frequency: 27MHz
Mounting Type: Surface Mount
Package: 1008 (2520 Metric)
