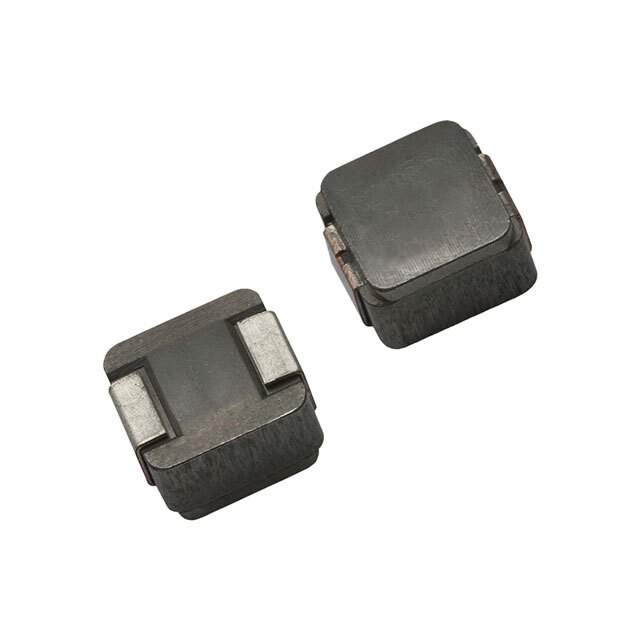

Same model may have multiple batches, images only for reference.

IHLP2020CZER2R2MA1

Name: IHLP2020CZER2R2MA1
Brand: Vishay
SKU: 976033
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHLP2020CZER2R2MA1
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	IHLP-2020CZ-A1 2.2 20% ER E3 / 2.2 µH Shielded Inductor 5.8 A 29.2mOhm Max Nonstandard
Datasheet	IHLP2020CZER2R2MA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHLP-2020CZ-A1
Package	Tape & Reel
Material - Core	Metal Composite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	5.8 A
Current - Saturation (Isat)	10A
Shielding	Shielded
DC Resistance (DCR)	29.2mOhm Max
Frequency - Self Resonant	39MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.216" L x 0.204" W (5.49mm x 5.18mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-IHLP2020CZER2R2MA1CT,541-IHLP2020CZER2R2MA1DKR,541-IHLP2020CZER2R2MA1TR
Standard Package	2,000
Win Source Part Number	976033-IHLP2020CZER2R2MA1
Ultra Librarian 3D Model	Ultra Librarian IHLP2020CZER2R2MA1 CAD Model

Alternative Products

Description

The IHLP2020CZER2R2MA1 is a fixed inductor designed for use in inductors, coils, and chokes.

Type: fixed inductor
Category: inductors, coils, and chokes
Package: Tape & Reel
Shielded: yes
Inductance: 2.2 µH
DCR: 29.2mOhm (maximum)
Current Rating: 5.8 A
Tolerance: ±20%
Operating Temperature Range: -55°C to 125°C
Manufacturer: Vishay Dale
ECCN: EAR99
Series: IHLP-2020CZ-A1
