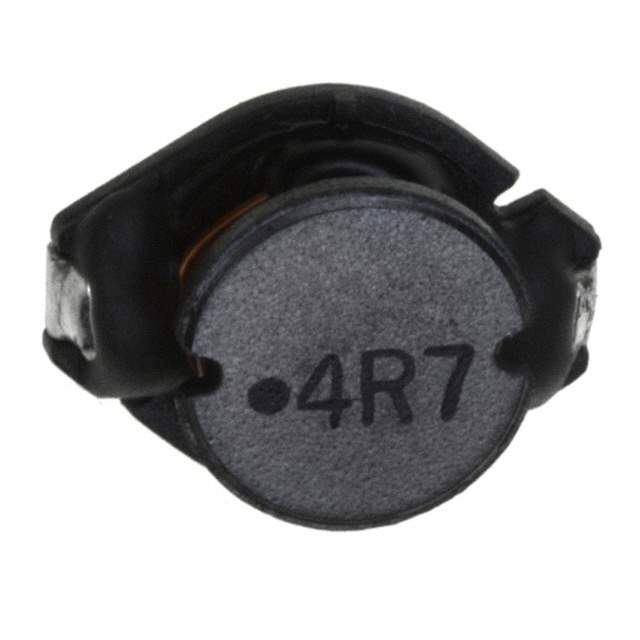

74456047 Real Image
Same model may have multiple batches, images only for reference.

74456047

Part No 74456047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD 4 | FIXED IND 4.7UH 5A 19 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 5A
Current - Saturation 6A
Shielding Unshielded
DC Resistance (DCR) 19mOhm Max
Frequency - Self Resonant 38MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Maximum) 0.209" (5.30mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130007-74456047
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 74456047 CAD Model

Description

The Wurth Electronics Inc. 1130007-74456047 is a wirewound component that comes in a reel package.

  • Mounting Style: SMD
  • Shielding: Unshielded
  • Inductance: 4.7μH with a tolerance of ±20%
  • Core Material: Ferrite
  • Current Saturation: 6A
  • Frequency Self-Resonant: 38MHz
  • DC Resistance (DCR): 19mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • Supply and Demand Status: Limited
