Same model may have multiple batches, images only for reference.

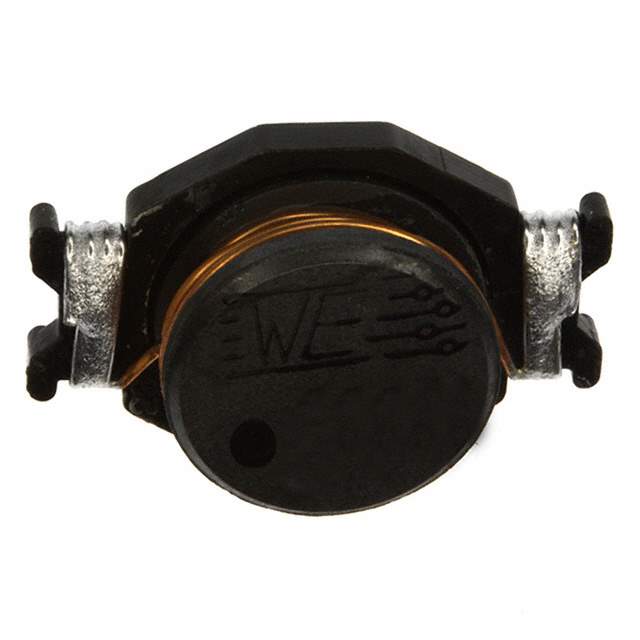

74457147 Real Image
Same model may have multiple batches, images only for reference.

74457147

Part No 74457147
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 2.8A 109 MOHM SMD / POWER-CHOKE WE-PD 4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±10%
Current Rating (Amps) 2.8A
Current - Saturation 5A
Shielding Unshielded
DC Resistance (DCR) 109mOhm Max
Frequency - Self Resonant 9.2MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.866" L x 0.591" W (22.00mm x 15.00mm)
Height - Seated (Maximum) 7.80mm
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811281-74457147
Ultra Librarian 3D Model Ultra Librarian 74457147 CAD Model

Description

The 811281-74457147 is a wirewound, unshielded SMD inductor manufactured by Würth Elektronik.

  • Inductance: 47μH
  • Tolerance: ±10%
  • Current Rating: 2.8A
  • Current Saturation: 5A
  • DC Resistance (DCR): 109mOhm Max
  • Frequency Self-Resonant: 9.2MHz
  • Temperature Range: -40°C to 125°C
  • Dimension: 0.866 inches L x 0.591 inches W (22.00mm x 15.00mm)
  • Height: 7.80mm
  • Manufacturer Pack Quantity: 250
