Same model may have multiple batches, images only for reference.

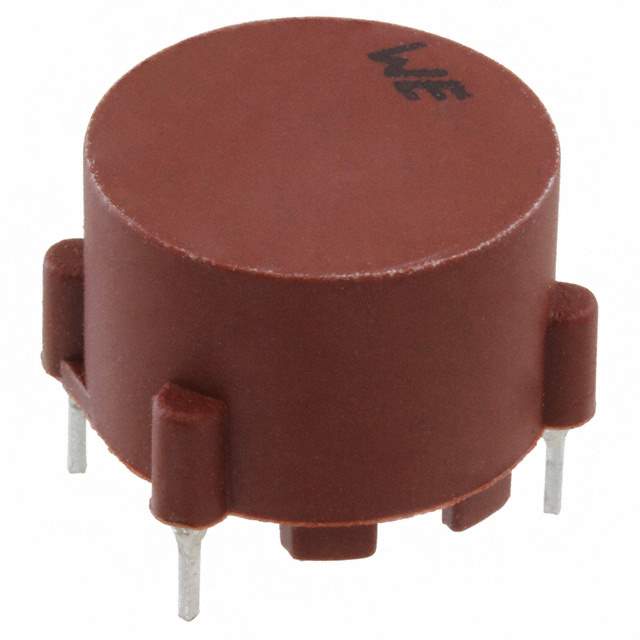

7446621007 Real Image
Same model may have multiple batches, images only for reference.

7446621007

Part No 7446621007
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 6.8MH 1A 2LN TH / 6.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1A DCR 300mOhm
Datasheet
7446621007 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Würth Elektronik
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 6.8 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Through Hole
Size / Dimension 0.709" L x 0.709" W (18.00mm x 18.00mm)
Height (Max) 0.512" (13.00mm)
Case / Package Horizontal, 4 PC Pin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-4602
Standard Package 90
Win Source Part Number 1328213-7446621007
Ultra Librarian 3D Model Ultra Librarian 7446621007 CAD Model

Description

The 7446621007 is a common mode choke from Würth Elektronik.

  • Voltage Rating: 250V
  • Current Rating: 1A
  • Inductance @ Frequency: 6.8 mH @ 10 kHz
  • DC Resistance (DCR): 300mOhm
  • Temperature Range: -40°C to 125°C
