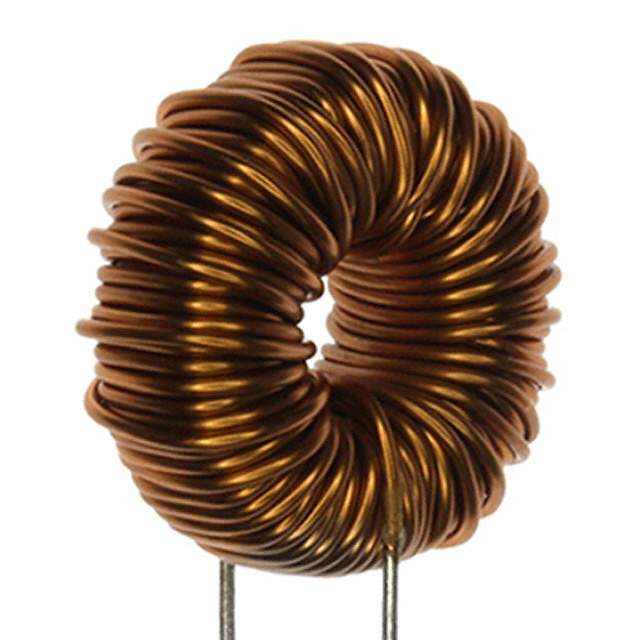

Same model may have multiple batches, images only for reference.

7447071

Name: 7447071
Brand: Wurth Electronics Inc
SKU: 813099
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447071
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 470UH 3A 110 MOHM TH / WE-FI Leaded Toroidal Line Choke
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Bulk
Type	Toroidal
Material - Core	Ferrite
Inductance	470μH
Tolerance	±20%
Current Rating (Amps)	3A
Shielding	Unshielded
DC Resistance (DCR)	110mOhm Max
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	10kHz
Mounting Style	Through Hole
Manufacturer Package	Radial, Vertical (Open)
Dimension	0.984" Dia x 0.472" W (25.00mm x 12.00mm)
Manufacturer Pack Quantity	36
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813102-7447071
Ultra Librarian 3D Model	Ultra Librarian 7447071 CAD Model

Alternative Products

Description

The 813102-7447071 is a toroidal inductor from Würth Elektronik.

Mounting Type: Through Hole
Shielding: Unshielded
Inductance: 470μH
Tolerance: ±20%
Core Material: Ferrite
DC Resistance (DCR): 110mOhm max
Current Rating: 3A
Frequency Test: 10kHz
