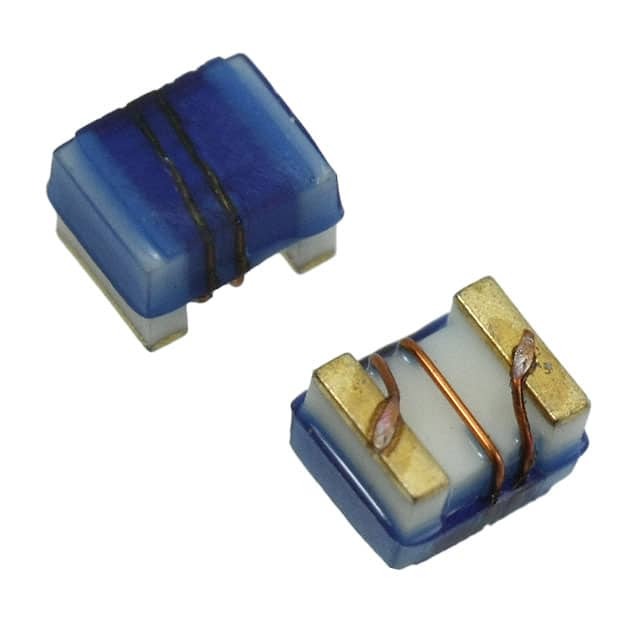

Same model may have multiple batches, images only for reference.

744762082A

Name: 744762082A
Brand: Wurth Electronics Inc
SKU: 857498
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744762082A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 8.2NH 1A 60 MOHM SMD
Datasheet	744762082A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	8.2 nH
Tolerance	±5%
Current Rating (Amps)	1 A
Shielding	Unshielded
DC Resistance (DCR)	60mOhm Max
Q @ Freq	50 @ 1GHz
Frequency - Self Resonant	5.5GHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Max)	0.075" (1.90mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857498-744762082A
Ultra Librarian 3D Model	Ultra Librarian 744762082A CAD Model

Alternative Products

Description

The 857498-744762082A is a fixed inductor from the WE-KI series by Wurth Electronics Inc.

Type: Drum core, wirewound inductor
Feature: Unshielded
Size: 0.102" L x 0.083" W (2.60mm x 2.10mm)
Inductance: 8.2 nH
Maximum Seated Height: 0.075" (1.90mm)
Mounting Type: Surface mount
Package: Tape & reel
DC Resistance (DCR): 60mOhm Max
Current Rating: 1 A
Operating Temperature: -40°C to 125°C
Material: Ceramic
Frequency Self-Resonant: 5.5GHz
Standard Package: 2,000 pcs
