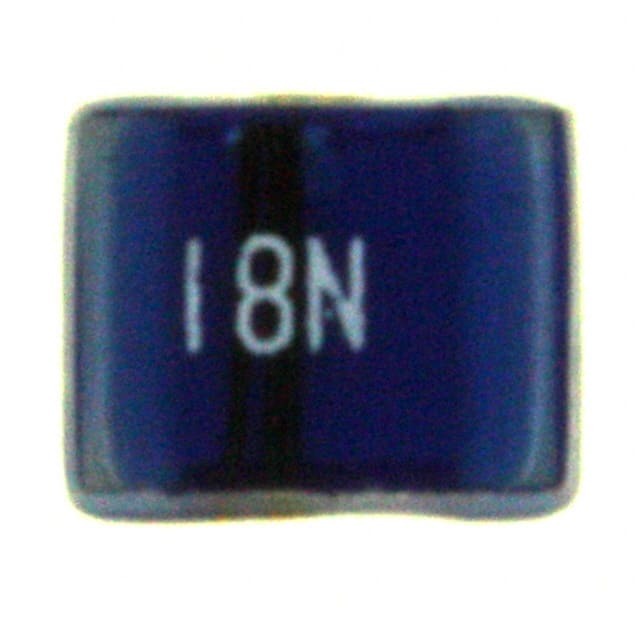

Same model may have multiple batches, images only for reference.

744762118A

Name: 744762118A
Brand: Wurth Electronics Inc
SKU: 857499
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744762118A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 18NH 1A 100 MOHM SMD
Datasheet	744762118A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	18 nH
Tolerance	±5%
Current Rating (Amps)	1 A
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	60 @ 350MHz
Frequency - Self Resonant	2.7GHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Max)	0.075" (1.90mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857499-744762118A
Ultra Librarian 3D Model	Ultra Librarian 744762118A CAD Model

Alternative Products

Description

The WE-KI series is a range of unshielded drum core, wirewound inductors designed for various electronic applications.

Size: 0.102" L x 0.083" W (2.60mm x 2.10mm)
Inductance: 18 nH
Tolerance: ±5%
Package: Tape & reel
Height: 0.075" (1.90mm)
DC Resistance (DCR): 100mOhm Max
Operating Temperature: -40°C to 125°C
Current Rating: 1 A
Frequency Self-Resonant: 2.7GHz
