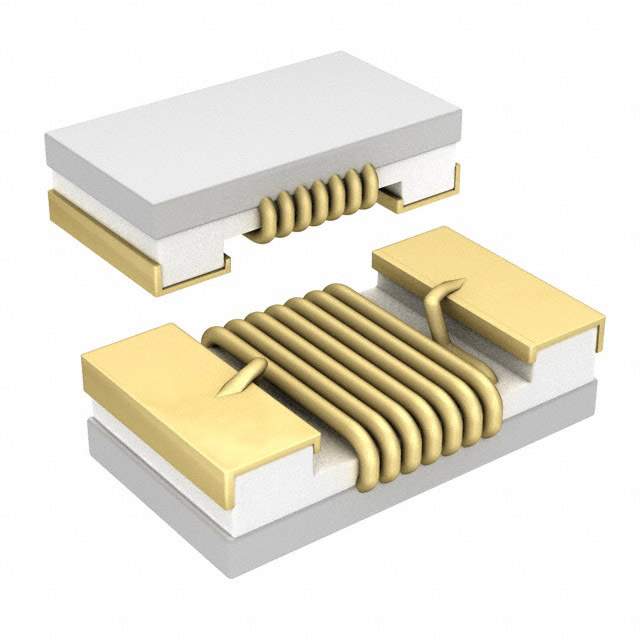

Same model may have multiple batches, images only for reference.

744765110A

Name: 744765110A
Brand: Wurth Electronics Inc
SKU: 1213907
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744765110A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10NH 480MA 195MOHM SMD / 10 nH Unshielded Drum Core, Wirewound Inductor 480 mA 195mOhm Max 0402 (1005 Metric)
Datasheet	744765110A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Würth Elektronik
Series	WE-KI
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	10 nH
Tolerance	±5%
Current Rating (Amps)	480 mA
Shielding	Unshielded
DC Resistance (DCR)	195mOhm Max
Q @ Freq	23 @ 250MHz
Frequency - Self Resonant	3.9GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	SMD (SMT)
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Dimension	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max)	0.024" (0.60mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	Q5151745,732-1723-1,732-1723-2,732-1723-6
Standard Package	3,000
Win Source Part Number	1213907-744765110A
Ultra Librarian 3D Model	Ultra Librarian 744765110A CAD Model

Alternative Products

Description

The Würth Elektronik fixed inductor is a high-performance electronic component used in electronic circuits.

Inductance: 10nH
Frequency Self-Resonant: 3.9GHz
Current Rating: 480mA
Mounting: SMD (SMT)
Package/Case: 0402 (1005 Metric)
Temperature Range: -40°C to 125°C
