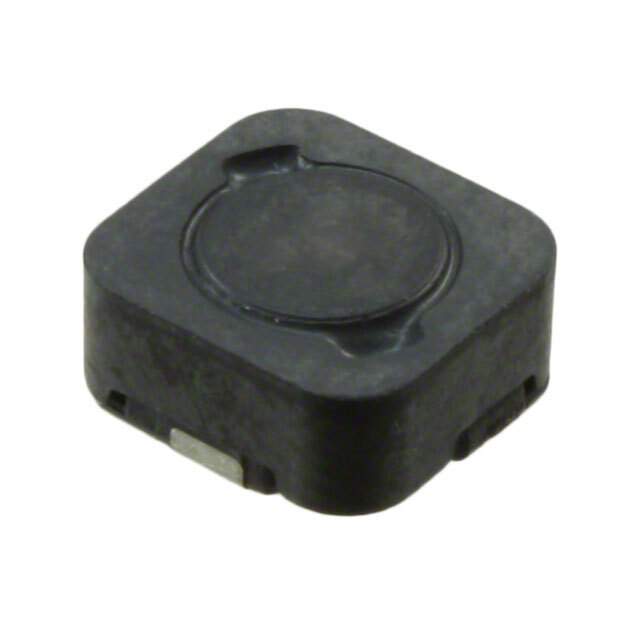

Same model may have multiple batches, images only for reference.

7447785115

Name: 7447785115
Brand: Wurth Electronics Inc
SKU: 809391
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447785115
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 15UH 1.6A 200 MOHM SMD / POWER-CHOKE WE-PD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	15μH
Tolerance	±25%
Current Rating (Amps)	1.6A
Current - Saturation	1.4A
Shielding	Shielded
DC Resistance (DCR)	200mOhm Max
Frequency - Self Resonant	28MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.244" L x 0.232" W (6.20mm x 5.90mm)
Height - Seated (Maximum)	0.130" (3.30mm)
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809392-7447785115
Ultra Librarian 3D Model	Ultra Librarian 7447785115 CAD Model

Alternative Products

Description

The 7447785115 is a shielded wirewound inductor manufactured by Würth Elektronik.

Inductance: 15μH
Maximum Current Rating: 1.6A
DC Resistance: 200mOhm
Self-Resonant Frequency: 28MHz
Temperature Range: -40°C to +125°C
Height: 3.30mm
