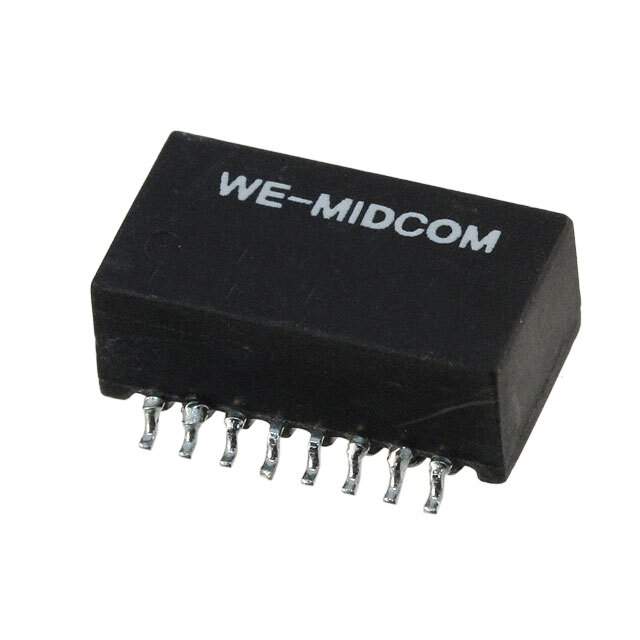

749013011 Real Image
Same model may have multiple batches, images only for reference.

749013011

Part No 749013011
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description TRANSFORMER LAN 10/100 POE SMD
Datasheet
749013011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Product Status Active
Transformer Type LAN 10/100 Base-T, Power over Ethernet (PoE)
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.510" L x 0.280" W (12.95mm x 7.11mm)
Height - Seated (Max) 0.210" (5.33mm)
Temperature Range - Operating -40°C ~ 85°C
Standard Package 575 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 857640-749013011
Ultra Librarian 3D Model Ultra Librarian 749013011 CAD Model

Description

The WE-LAN series is a category of pulse transformers designed for LAN 10/100 Base-T and Power over Ethernet (PoE) applications.

  • Size: 0.510" L x 0.280" W (12.95mm x 7.11mm)
  • Inductance: 350µH
  • Maximum Current Rating: 575 pcs
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Manufacturer: Wurth Electronics Inc
