Same model may have multiple batches, images only for reference.

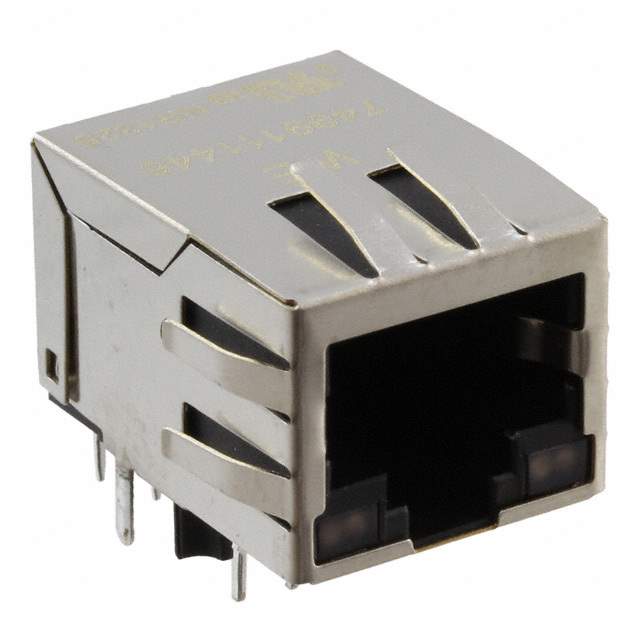

7499111446 Real Image
Same model may have multiple batches, images only for reference.

7499111446

Part No 7499111446
Manufacturer Wurth Electronics Inc
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
7499111446 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Wurth Electronics Inc
Series WE-RJ45 LAN
Package Tube
Product Status Active
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.549" (13.95mm)
LED Color Yellow, Green - Yellow, Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Down
Contact Material Tin
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Copper Alloy
Housing Material Thermoplastic
Standard Package 29 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 857651-7499111446
Ultra Librarian 3D Model Ultra Librarian 7499111446 CAD Model

Description

The 795902 is a modular connector jack with magnetics in the WE-RJ45 LAN series.

  • Manufacturer: Wurth Electronics Inc
  • Win Source Part Number: 857651-7499111446
  • Board Guide: Yes
  • Connector Type: RJ45
  • Rows: Single Row
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tube
  • Height Above Board: 0.549" (13.95mm)
  • Shielded: with EMI finger
  • Housing Material: Thermoplastic
  • Applications: 10/100/1000 Base-T and AutoMDIX
  • Orientation: 90° angle (right)
  • Ports: Single Port
  • LED Color: Yellow and Green
  • Cores per Jack: 8
  • Temperature Range: -40°C to 85°C
