Same model may have multiple batches, images only for reference.

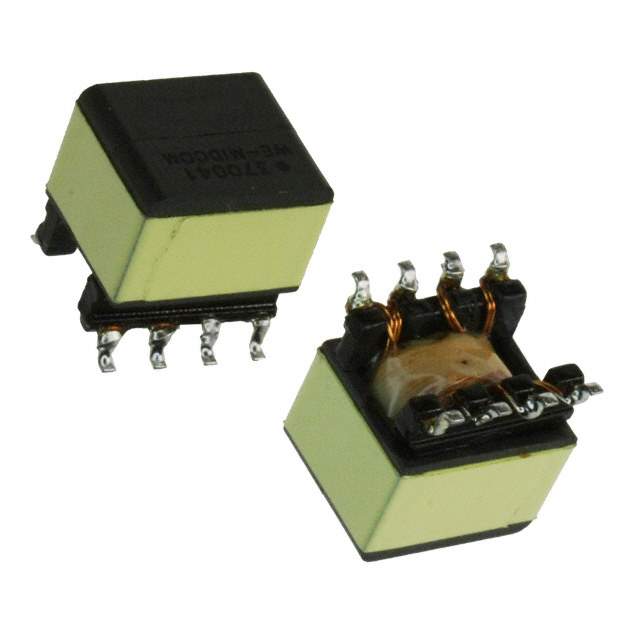

750370047 Real Image
Same model may have multiple batches, images only for reference.

750370047

Part No 750370047
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANS FLYBACK LT3573 30UH SMD / Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 250 ~ 500kHz Surface Mount
Datasheet
750370047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Switching Converter, SMPS Transformers
Manufacturer Würth Elektronik
Packaging Reel - TR
Type For DC/DC Converters
Applications Flyback Converters
Intended Chipset LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer Linear Technology
Voltage - Primary 10 ~ 30V
Voltage - Auxiliary 5V @ 20mA
Voltage - Isolation 1500Vrms
Inductance @ Frequency 30µH @ 10kHz
Frequency 250 ~ 500kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Height - Seated (Max) 0.365" (9.27mm)
Footprint 0.425" L x 0.525" W (10.80mm x 13.35mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 732-2224-6,Q6428376ZZ,732-2224-2,732-2224-1
Standard Package 400
Win Source Part Number 1329302-750370047
Ultra Librarian 3D Model Ultra Librarian 750370047 CAD Model

Description

The Würth Elektronik 1329302-750370047 is a surface mount transformer designed for use in flyback converters.

  • Frequency Range: 250 ~ 500kHz
  • Inductance @ 10kHz: 30µH
  • Intended Chipsets: LT3573, LT3574, LT3575, and LT3748 (Linear Technology)
  • Voltage Isolation: 1500Vrms
  • Primary Voltage Range: 10 ~ 30V
  • Package: 400
  • Footprint: 0.425" L x 0.525" W (10.80mm x 13.35mm)
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
  • Application: DC/DC Converters
  • REACH: Unaffected
