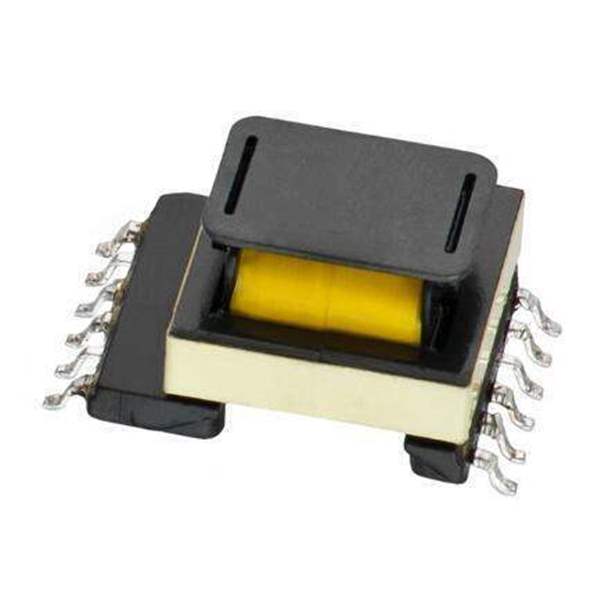

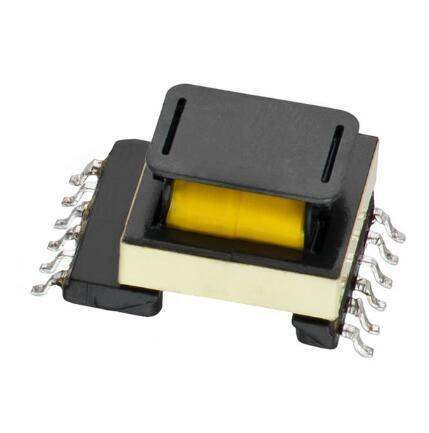

760871113Würth Elektronik
Same model may have multiple batches, images only for reference.

760871113

Part No 760871113
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description XFMR LED DR AC/DC CONV 1.31MH SM
Datasheet
760871113 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Transformers Switching Converter, SMPS Transformers
Product Status Active
Type For AC/DC Converters
Applications LED Drivers, AC/DC SMPS
Voltage - Primary 85 ~ 265V
Voltage - Isolation 4000Vrms
Inductance @ Frequency 1.31mH @ 100kHz
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Win Source Part Number WS1210817-760871113
Ultra Librarian 3D Model Ultra Librarian 760871113 CAD Model

Description

LED Drivers, AC/DC SMPS For For AC/DC Converters SMPS Transformer 4000Vrms Isolation 60 ~ 150kHz Surface Mount
