Same model may have multiple batches, images only for reference.

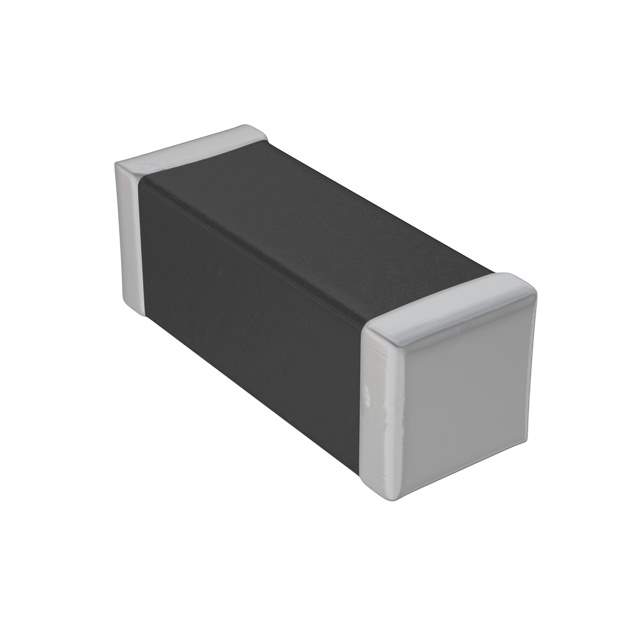

782762301 Real Image
Same model may have multiple batches, images only for reference.

782762301

Part No 782762301
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 300 OHM 1206 1LN / 300 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 1206 (3216 Metric) 500mA 100mOhm
Datasheet
782762301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Würth Elektronik
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 300 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 100mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Case / Package 1206 (3216 Metric)
Mounting Surface Mount
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-6715-1,732-6715-2,732-6715-6
Standard Package 3,000
Win Source Part Number 1328084-782762301
Ultra Librarian 3D Model Ultra Librarian 782762301 CAD Model

Description

The Würth Elektronik 782762301 is a ferrite bead and chip that is used in various electronic devices.

  • Category: Filter
  • Packaging: reel - TR
  • Size/Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Current Rating (max): 500mA
  • Standard Package: 3,000
  • Mounting Type: Surface Mount
  • Impedance: 300 Ohms @ 100 MHz
  • DC Resistance (DCR) (max): 100mOhm
  • Temperature Range: -55°C ~ 125°C
  • Package: 1206 (3216 Metric)
