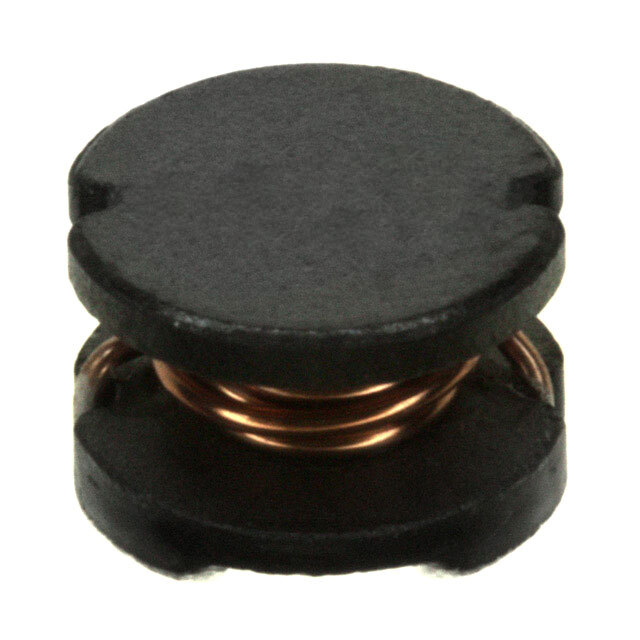

Same model may have multiple batches, images only for reference.
784774022 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

784774022

Part No 784774022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description 2.2 µH Unshielded Drum Core, Wirewound Inductor 4.6 A 41mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Würth Elektronik
Series WE-PD2A
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 4.6 A
Current - Saturation (Isat) 8.2A
Shielding Unshielded
DC Resistance (DCR) 41mOhm Max
Frequency - Self Resonant 54MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 5848
Size / Dimension 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max) 0.191" (4.85mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1479158-784774022
Ultra Librarian 3D Model Ultra Librarian 784774022 CAD Model
