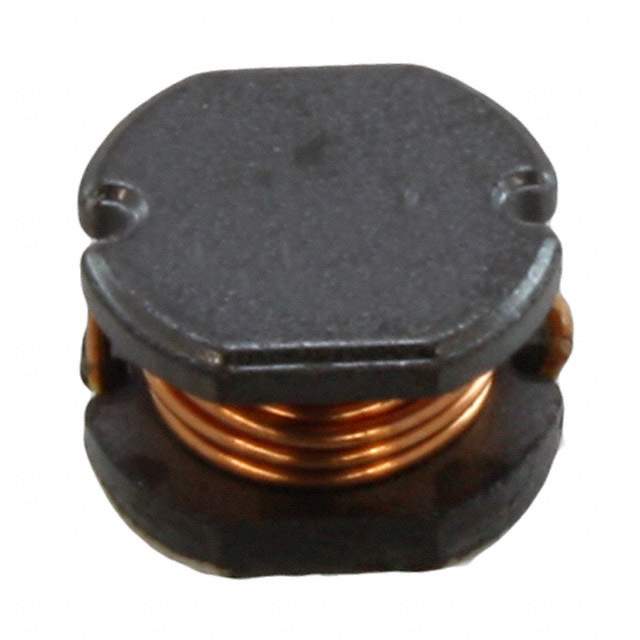

Same model may have multiple batches, images only for reference.

744775182

Get a Quote

Part No	744775182
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 82UH 900MA 370MOHM SMD / 82 µH Unshielded Drum Core, Wirewound Inductor 900 mA 370mOhm Max Nonstandard
Datasheet	744775182 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	82 µH
Tolerance	±10%
Current Rating (Amps)	900 mA
Current - Saturation (Isat)	950mA
Shielding	Unshielded
DC Resistance (DCR)	370mOhm Max
Frequency - Self Resonant	8.6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	10 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)	0.217" (5.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-4157-6,732-4157-1,732-4157-2
Standard Package	500
Win Source Part Number	1327735-744775182
Ultra Librarian 3D Model	Ultra Librarian 744775182 CAD Model

Alternative Products

Description

The 744775182 is a fixed inductor manufactured by Würth Elektronik.

Inductance: 82 μH
Tolerance: ±10 percent
Material: ferrite material
Construction: drum core, wirewound
Shielding: unshielded
Size: 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height: 0.217" (5.50mm) when seated
Standard Package: 500
Mounting: surface mount
DC Resistance (DCR): 370mOhm Max
Current Rating: 900 mA
Temperature Range: -40°C to 125°C
Frequency Range: 8.6MHz
