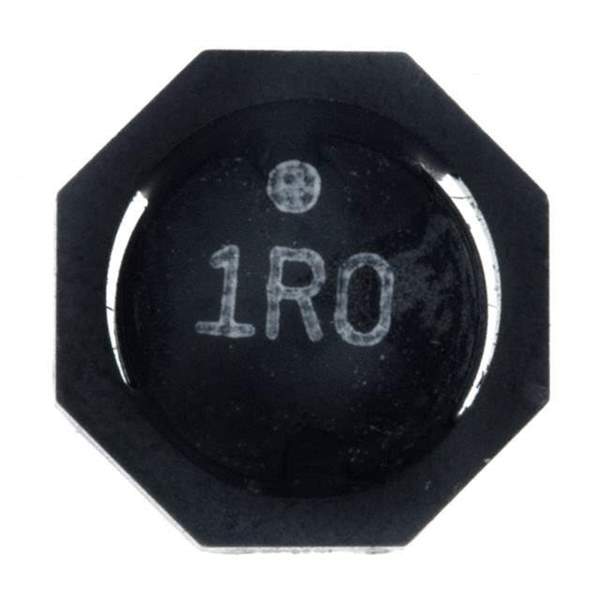

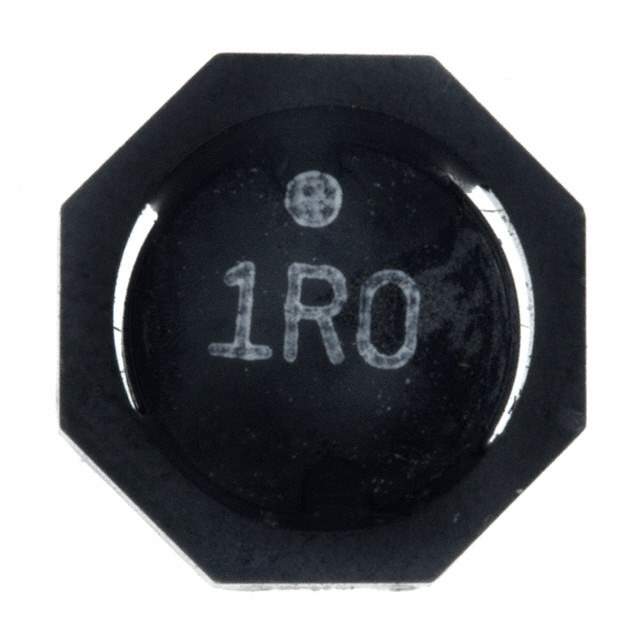

Same model may have multiple batches, images only for reference.

744065150

Name: 744065150
Brand: Wurth Electronics Inc
SKU: 857266
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744065150
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 15UH 2.2A 90 MOHM SMD
Datasheet	744065150 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±30%
Current Rating (Amps)	2.2 A
Current - Saturation (Isat)	2.25A
Shielding	Shielded
DC Resistance (DCR)	90mOhm Max
Frequency - Self Resonant	22MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.122" (3.10mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857266-744065150
Ultra Librarian 3D Model	Ultra Librarian 744065150 CAD Model

Alternative Products

Description

The 857266-744065150 is a fixed inductor from the WE-TPC series by Wurth Electronics Inc.

Core Type: Shielded Drum Core, Wirewound
Package: Tape and Reel
Mounting Type: Surface Mount
Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Inductance: 15 μH
Maximum Seated Height: 0.122" (3.10mm)
Tolerance: ±30%
DC Resistance (DCR): 90mOhm maximum
Operating Temperature: -40°C to 125°C
Current Rating: 2.2 A
Self-Resonant Frequency: 22MHz
