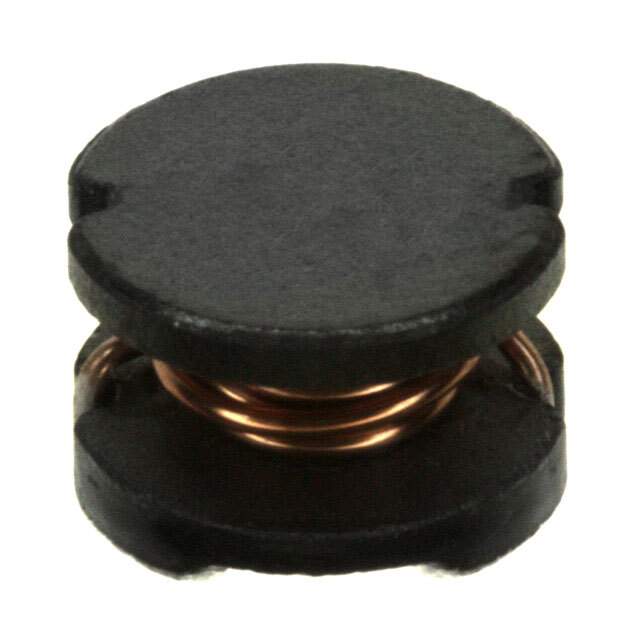

Same model may have multiple batches, images only for reference.

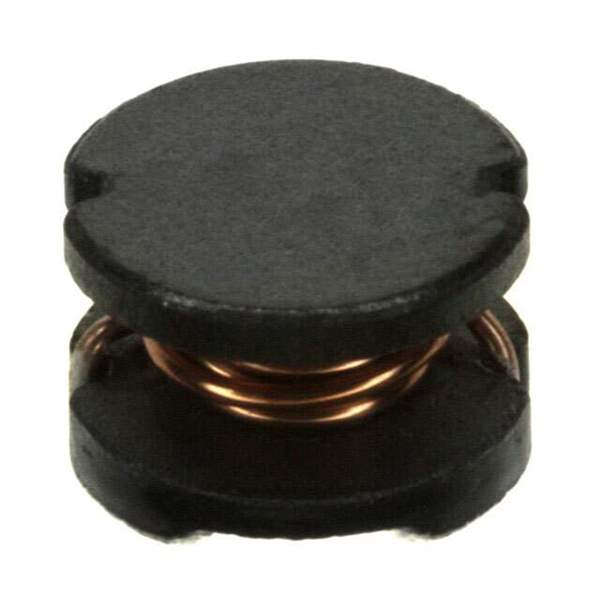

784775247 Real Image
Same model may have multiple batches, images only for reference.

784775247

Part No 784775247
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 470UH 360MA 1.96OHM SM / 470 µH Unshielded Drum Core, Wirewound Inductor 360 mA 1.96Ohm Max Nonstandard
Datasheet
784775247 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±20%
Current Rating (Amps) 360 mA
Current - Saturation (Isat) 380mA
Shielding Unshielded
DC Resistance (DCR) 1.96Ohm Max
Frequency - Self Resonant 3MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 10 kHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 7850
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max) 0.217" (5.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-6873-1,732-6873-2,732-6873-6
Standard Package 500
Win Source Part Number 1327709-784775247
Ultra Librarian 3D Model Ultra Librarian 784775247 CAD Model

Description

The Würth Elektronik 1327709-784775247 is a fixed inductor that is designed for surface mounting.

  • Size: 0.307” L x 0.276” W
  • Height: 0.217”
  • Inductance: 470 µH
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Core Material: Ferrite
  • DC Resistance: 1.96 Ohms max
  • Current Rating: 360 mA
  • Frequency: 3MHz
  • REACH: Unaffected
  • ECCN: Compliant
  • Standard Package: 500
