Same model may have multiple batches, images only for reference.

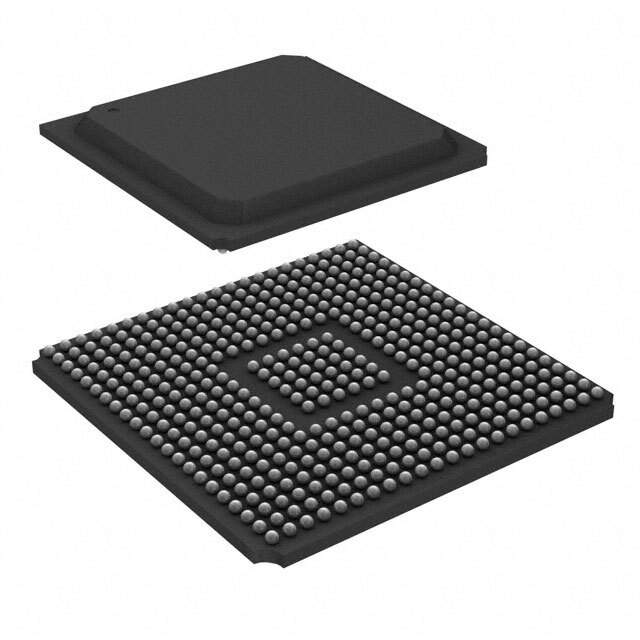

XC2S100-5FG456C Real Image
Same model may have multiple batches, images only for reference.

XC2S100-5FG456C

Part No XC2S100-5FG456C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 196 I/O 456FBGA
Datasheet
XC2S100-5FG456C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Status Obsolete(EOL)
Number of LABs/CLBs 600
Number of Logic Elements/Cells 2700
Total RAM Bits 40960
Number of I/O 196
Number of Gates 100000
Supply Voltage - Operating 2.375 V to 2.625 V
Mounting SMD (SMT)
Temperature Range - Operating 0°C to 85°C (TJ)
Case / Package 456-FBGA (23x23)
Win Source Part Number 057563-XC2S100-5FG456C
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XC2S100-5FG456C CAD Model

Description

The XC2S100-5FG456C from Xilinx Inc. is an obsolete programmable integrated circuit with 196 I/Os, 600 LABs/CLBs, 2700 logic elements/cells, and 100000 gates.

  • I/Os: 196
  • LABs/CLBs: 600
  • Logic Elements/Cells: 2700
  • Gates: 100000
  • Total RAM bits: 40960
  • Supply Voltage: 2.375 V to 2.625 V
  • Package: 456-FBGA (23x23)
  • Usage: Integrated circuits applications
