XC3SD1800A-4FGG676I

Part No XC3SD1800A-4FGG676I
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description FPGA Spartan®-3A DSP Family 1.8M Gates 37440 Cells 667MHz 90nm Technology 1.2V 676-Pin FBGA / IC FPGA 519 I/O 676FBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Status Active
Number of LABs/CLBs 4160
Number of Logic Elements/Cells 37440
Total RAM Bits 1548288
Number of I/O 519
Number of Gates 1800000
Supply Voltage - Operating 1.14 V to 1.26 V
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 100°C (TJ)

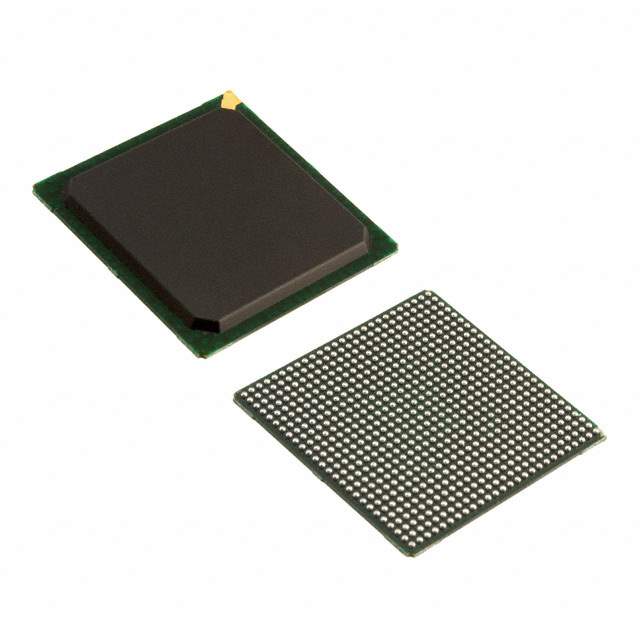

Case / Package 676-FBGA (27x27)
Win Source Part Number 084605-XC3SD1800A-4FGG676I
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name XC3SD1800A
Introduction Date March 30, 2007
ECCN 3A991.d
Country of Origin Philippines, Republic of Korea, Taiwan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian XC3SD1800A-4FGG676I CAD Model

Description

The XC3SD1800A-4FGG676I is a high-performance Field Programmable Gate Array (FPGA) manufactured by Xilinx Inc.

  • I/Os: 519
  • LABs/CLBs: 4160
  • Logic Elements/Cells: 37440
  • Gates: 1800000
  • Total RAM: 1548288 bits
  • Voltage Range: 1.14V to 1.26V
  • Popularity: High
  • Industries: Communication, medical, and military
  • Package: 676-FBGA (27x27)
  • Temperature Range (TJ): -40°C to 100°C
