The XC7Z015-2CLG485E is a Zynq-7000 All Programmable SoC (System on Chip) from Xilinx. This SoC integrates a dual-core ARM Cortex-A9 processor with 74K logic cells of 28nm programmable logic, offering a versatile platform for a wide range of embedded applications. The combination of processing power and programmable logic allows for both software and hardware customization.

Applications:

• Industrial Automation: Used in programmable logic controllers (PLCs), motor control, and industrial networking.
• Automotive: Employed in advanced driver-assistance systems (ADAS), infotainment, and vehicle control systems.
• Embedded Vision: Utilized in machine vision, surveillance, and video analytics systems.
• Aerospace and Defense: Integrated into communication systems, radar processing, and electronic warfare.
• Medical Devices: Found in medical imaging, patient monitoring, and diagnostic equipment.

Features:

• Processing System (PS): Dual-core ARM Cortex-A9 processor with a clock speed up to 766MHz.
• Programmable Logic (PL): 74K logic cells equivalent to Artix-7 FPGA fabric.
• Memory Interfaces: Supports DDR3, DDR2, and QSPI flash memory interfaces.
• Connectivity: Includes Gigabit Ethernet, USB 2.0, CAN, UART, SPI, and I2C interfaces.
• Peripherals: Integrated timers, counters, interrupt controllers, and DMA controllers.

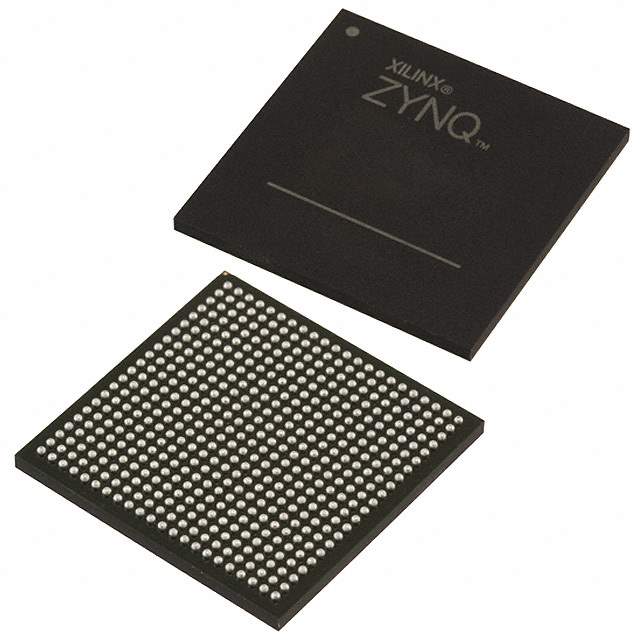

• Package: Housed in a 485-pin Fine-Pitch Ball Grid Array (FBGA) package.
• Speed Grade: -2 speed grade indicates a specific performance level within the Zynq-7000 family.
• Temperature Grade: E-grade indicates Extended temperature range (-40°C to +125°C Junction).

Benefits:

• High Integration: Combines processing and programmable logic on a single chip, reducing system complexity and cost.
• Flexibility: Allows for both software and hardware customization, enabling a wide range of applications.
• Performance: Delivers high performance for demanding embedded applications.
• Power Efficiency: Offers excellent power efficiency, making it suitable for battery-powered devices.
• Scalability: Provides a scalable platform for developing embedded systems with varying performance requirements.

Additional Details:

The XC7Z015-2CLG485E supports a variety of operating systems, including Linux, FreeRTOS, and VxWorks. It is supported by Xilinx's Vivado Design Suite and SDK (Software Development Kit), which provide comprehensive tools for hardware and software development. The device features advanced security capabilities, such as AES encryption and secure boot, to protect against unauthorized access and tampering. It is manufactured using a 28nm process technology, offering a balance of performance, power, and cost. This SoC is ideally suited for applications requiring real-time processing, hardware acceleration, and flexible connectivity options.
