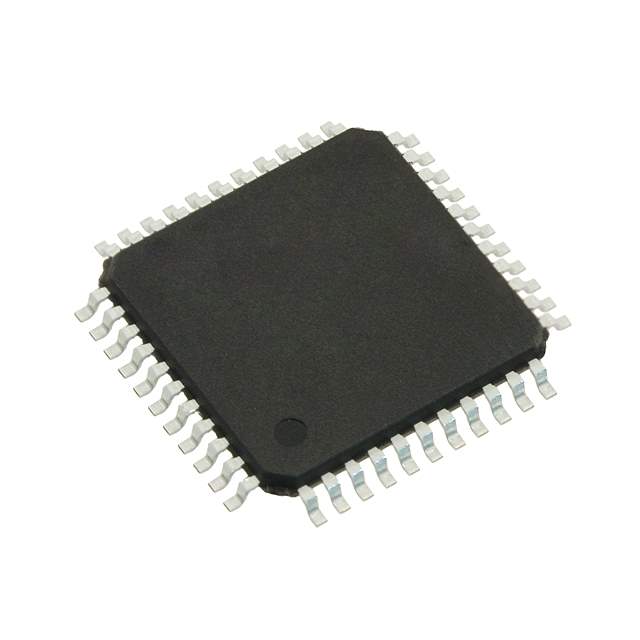

XC9536XL-7VQ44I Real Image
Same model may have multiple batches, images only for reference.

XC9536XL-7VQ44I

Part No XC9536XL-7VQ44I
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 36MC 7.5NS 44VQFP
Datasheet
XC9536XL-7VQ44I Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Active
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 3 V to 3.6 V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
Number of I/O 34
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 44-VQFP (10x10)
Win Source Part Number 086820-XC9536XL-7VQ44I
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name XC9536XL
Introduction Date May 01, 1996
ECCN EAR99
Country of Origin Japan, Philippines, Republic of Korea, Taiwan
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian XC9536XL-7VQ44I CAD Model

Description

The XC9536XL-7VQ44I is an in-system programmable (min 10K program/erase cycles) complex programmable logic device from Xilinx Inc.

  • Maximum Delay Time: 7.5ns
  • Voltage Supply Range: 3 V to 3.6 V
  • Gates: 800
  • Logic Elements/Blocks: 2
  • Macrocells: 36
  • I/Os: 34
  • Case/Package: 44-VQFP (10x10)
  • Popularity Rate: High
  • Estimated EOL Date: 2023
  • Manufactured in: Japan, Philippines, Republic of Korea, and Taiwan
