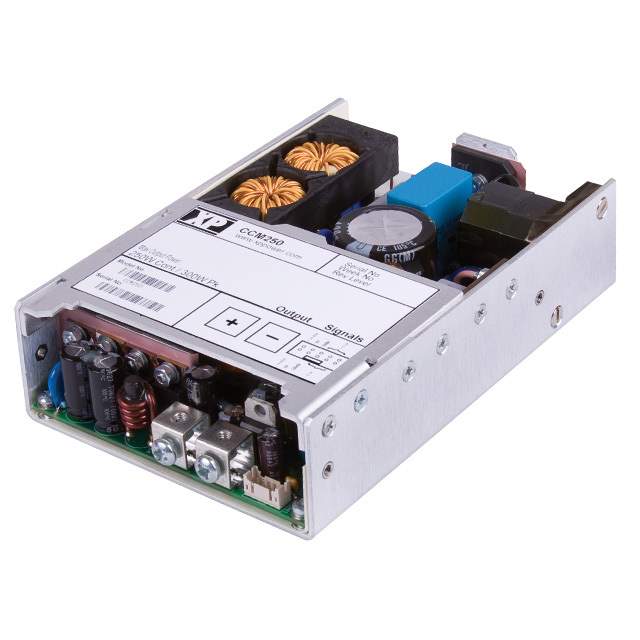

CCM250PS24 Real Image
Same model may have multiple batches, images only for reference.

CCM250PS24

Part No CCM250PS24
Manufacturer XP Power
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 24V 250W / Open Frame AC DC Converters 1 Output 24V 80 ~ 275 VAC Input
Datasheet
CCM250PS24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr XP Power
Series CCM (250W)
Package Bulk
Type Open Frame
Number of Outputs 1
Voltage - Input 80 ~ 275 VAC
Voltage - Output 1 24V
Current - Output 1 10.4 A
Power (Watts) 250W
Applications ITE (Commercial) , Medical
Voltage - Isolation 4 kV
Efficiency 95%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Features Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input
Mounting Type Chassis Mount
Size / Dimension 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.1mm)
Approval Agency CB, TUV, UL
Standard Number 62368-1
Minimum Load Required No
Base Product Number CCM250
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.6012
Win Source Part Number 1351154-CCM250PS24
Ultra Librarian 3D Model Ultra Librarian CCM250PS24 CAD Model

Description

The CCM250PS24 is an open frame external/internal AC DC converter from the CCM (250W) series from XP Power.

  • Series: CCM (250W)
  • Features: Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input
  • Size: 6.00" L x 4.00" W x 1.54" H (152.4mm x 101.6mm x 39.1mm)
  • Application: ITE (Commercial), Medical
  • Standard Package: 1
  • Power: 250W
  • Voltage Input: 80 ~ 275 VAC
  • Voltage Isolation: 4 kV
  • Output Voltage: 24V
  • Efficiency: 95%
  • Minimum Load: No minimum load required
  • Mounting Type: Chassis mount
  • Operating Temperature: -20°C to 70°C (with derating)
  • MSL: Not Applicable
  • HTSUS: 8504.40.6012
  • Current Output: 10.4A
  • Base Product Number: CCM250
  • Approvals: CB, TUV, UL
  • Standard Number: 62368-1
