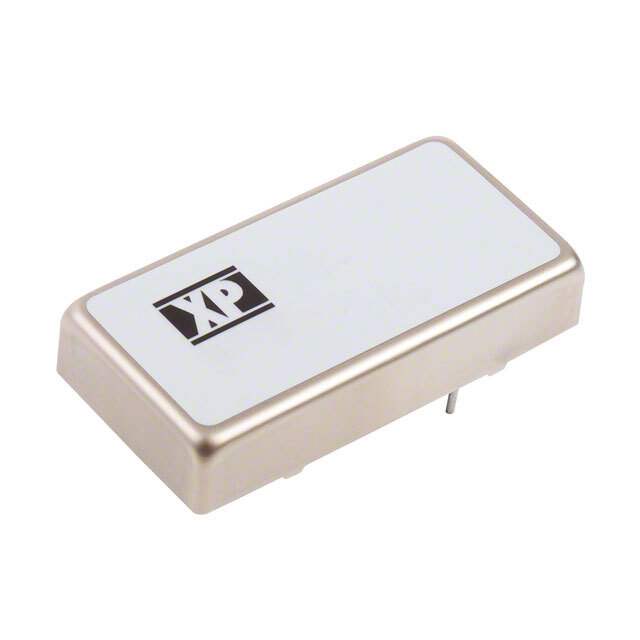

Same model may have multiple batches, images only for reference.

JTH1524S12

Name: JTH1524S12
Brand: XP Power
SKU: 166399
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JTH1524S12
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 12V 15W
Datasheet	JTH1524S12 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	XP-Power
Series	JTH
Packaging	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	1.25A
Power (Watts) - Manufacture Series	15W
Voltage - Isolation	1.5kV (1500V)
Applications	ITE (Commercial)
Features	OCP, OVP, SCP, UVLO
Mounting Style	Through Hole
Package	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Operating Temperature Range	-40°C ~ 100°C
Efficiency	85%
Power (Watts) - Max	15W
Win Source Part Number	205777-JTH1524S12
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian JTH1524S12 CAD Model

Alternative Products

Description

The XP-Power JTH1524S12 is a DC DC converter that is designed to be mounted on a board.

Module Type: Isolated
Voltage Isolation: 1.5kV
Operating Temperature Range: -40°C to 100°C
Features: OCP, OVP, SCP, and UVLO
Package: 6-DIP module
Size: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Application: ITE (Commercial)
Output Current: 1.25A
Output Voltage: 12V
Power Output: 15W
Efficiency: 85%
