Same model may have multiple batches, images only for reference.

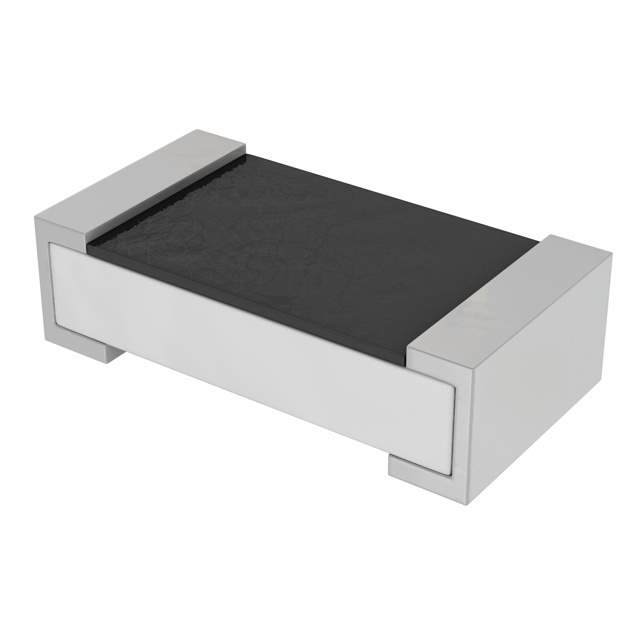

PT0402FR-070R1L Real Image
Same model may have multiple batches, images only for reference.

PT0402FR-070R1L

Part No PT0402FR-070R1L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.1 OHM 1% 1/16W 0402
Datasheet
PT0402FR-070R1L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Yageo
Packaging Reel - TR
Status Active
Resistance (Ohms) 0.1
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package 0402
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Win Source Part Number 210300-PT0402FR-070R1L
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian PT0402FR-070R1L CAD Model

Description

The Yageo PT0402FR series is a thick film resistor with a resistance of 0.1 Ohms and a power rating of 0.063W. It is designed for use in automotive applications and is AEC-Q200 rated.

  • Resistance: 0.1 Ohms
  • Power Rating: 0.063W
  • Application: Automotive applications
  • AEC-Q200 Rated: Yes
  • Tolerance: ±1%
  • Temperature Range: -55°C to 155°C
  • Supplied: Reel of 10,000 pieces
  • Height: 0.016 inches
  • Use: Widely used in automotive applications such as engine control units and power steering systems
